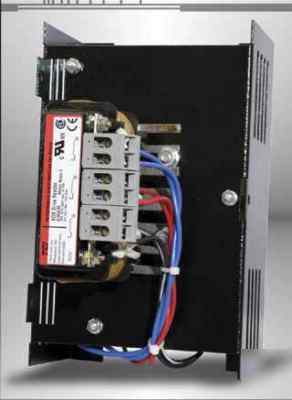

New motor protection filter, enclosed, 100HP duty
NEW 100HP RATED SERIES OUTPUT FILTER FOR AC MOTOR & CABLE PROTECTION, ...WARRANTED
THIS COMPACT DESIGN HAS BEEN DEVELOPED WITH SPACE SENSITIVE APPLICATIONS IN MIND. THIS FILTER GREATLY REDUCES MOTOR FAILURES ON VFD APPLICATIONS BY LIMITING THE MAGNITUDE OF VOLATGE SPIKES TO LEVELS BELWO 1000 VOLTS & SLOWS DOWN THE RATE OF CHANGE OF PWM SWITCHING BY A FACTOR OF THREE. THIS FILTER HAS DEMONSTRATED SUCCESS IN PROTECTING THE CABLE & MOTOR INSULATION BY REDUCING THE DAMAGING EFFECTS OF RFLECTED WAVE. DESIGNED TO BE INSTALLED WITHIN 10' OF THE DRIVE OUTPUT TERMINALS. THE FILTER INCREASES PROCESS UPTIME & MOTOR LIFE.
RATED 100HP AT 480V, 130A, 270 WATTS LOSS
ENCLOSED FILTER, 16.5" X 18" X 15", WEIGHT 83#
UNIT CAN BE SUPPLIED W/O AN ENCLOSURE AS AN OPEN FILTER
UNIT CAN COME IN A HEAVY DUTY VERSION
OTHER VOLTAGES(600 & 240V) AVAILABLE
SPECS: 3 PHASE, 600V CLASS, UL LISTED, WARRANTED, PERFORMANCE GUARANTEE, NEMA 1 ENCLOSURE, INDUSTOR USES DISTRIBUTED GAP TECHNOLOGY, 40 DEG C AMBIENT TEMP, 180 DEGREES C OR 220 DEGREES C INDUCTOR INSULATION RATING, DESIGNED TO MITIGATE THE NEGATIVE EFFECTS OF VERY LONG MOTOR LEADS & HAS REACHED LENGTHS OF UP TO 3000' & SINGLE OR MULTIPLE MOTOR CAPABLE
DELIVERY FROM STOCK OR 2-4 WEEKS ARO IF OUT OF STOCK
OTHER LINE PERFORMANCE & PROTECTION EQUIPMENT AVAIL; ....DRIVE FILTERS, OUTPUT FILTERS, HARMONIC DRIVE APPLIED FILTERS, RFI POWER LINE FILTERS & HIGH ENDURANCE CAPACITORS
