Ladder rack chevy dodge ford gmc van white racks 3 bar
For more information please call (***)-497-9555

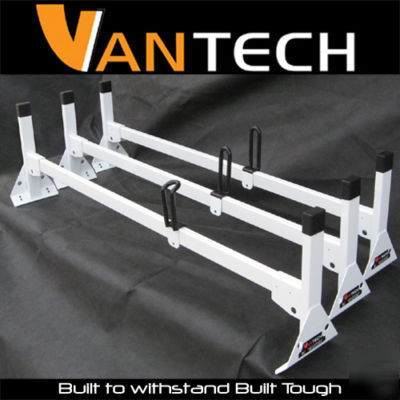

Vantech 2008' 3 bar Ladder rack system for Full size vans (White Racks)
New arrival 2008' model H1 ladder rack system. The part # 2080-3W system is a bolt-on system and does not require any drilling. It uses a rubber coated 11 gauge 2x8 clamp that bolts onto the underside of the drip rails. The cross bars 14 gauge steel rectangular 2" x 1". The mounting bases are 8" wide and 11 gauge steel. All of our 3 bar Bolt-down systems includes angle support, ladder positioners and EZ-Velcro ladder strap. All of our supports are coated in rubber for extra protection.
Note: Will work on all extended models, 1 ton, 2 ton, and 3 ton.
* Due to the slight arch in the center of the vehicle our mounting bases are 1/2" shorter to accommodate the height difference.
Maximum load capacity of 750 lbs 3 Bar kit (evenly distributed)
14 gauge high strength steel 2" x 1" rectangular cross bars
11 gauge high strength steel mounting bases
16.5" low roof clearance from drip rails
7" Clearance from drip rail to the bottom of the cross bars
Rubber coated drip rail clamps to avoid metal scuffing
Powder coated hi-gloss white finish
4 eyehooks per mounting base (24 eyehooks total)
Includes adjustable ladder positioner and angle ladder support
All supports are coated in thick rubber for long lasting protection
5 year limited warranty (read warranty below for more information)
Distributed by The Works Heavy Industries
Product Content 3 bar system White
Black plastic w/adhesive backing
The bar guard is made out of plastic to protect and prolong the life of the cross bars. The bar guard prevents materials from scratching the surface of the cross bars. Prevent premature wear and tear.
Is tubular and telescopic bars stronger than rectangular bars? Tubular bars and square bars can only handle a small portion of the weight of a rectangular bar. The weakest systems are telescopic bars. Telescopic bars can bend and flex by the middle because it is a 2 piece system sliding into each other (male/female design) and fastened by a single bolt. Some manufacturers claim to be able to hold 300lbs-400lbs per bar, but is that's evenly distributed weight? Can their system hold the weight down on a emergency stop? That's a lot of weight.
H1 system 8" Wide 11 gauge steel rack base
Is it safer to use a wider base than oppose to a shorter base? Most van racks can hold 500lbs to 750lbs. Can it also hold the same weight during an emergency stop or a frontal impact which is many times the weight it is carrying. That is why we made our system using an 8" wide base and 11 gauge thickness to try to prevent such an occurrence. Watch the video above. We lifted the rear of a Dodge 2500 (Total vehicle gross weight 7360lbs.) with our forklift using only a 1 bar system in the rear. Please do not try this at home or at work.
1 Eyehook opening for bungee tie down
2 Eyehook opening for bungee tie down
H1 system x4 Eyehook opening for bungee tie down
