Lab variable high precision dc power supply 0-30V/0-5A

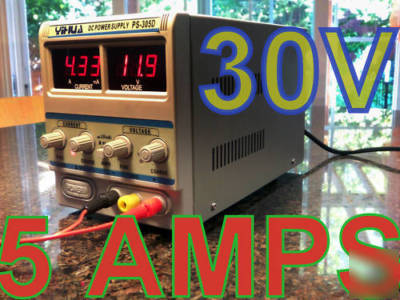

NEW Lab Variable High Precision DC Power Supply (0-30V/0-5A) MODEL PS305D
* Range can be adjusted in .1 steps for current up to 5A max.
* Separate 3 digit LED display
* 2 knobs: one for fast coarse tuning and one for fine tuning
* LO/HI push button to change range from A to mA
* Range can be adjusted in .1 steps for voltage up to 30V DC max.
* 2 knobs: one for coarse adjustment and one for fine tuning
Voltage Stability: 0.01% =2mV, Load Stability 0.01% =2mV, Recovery Time 100ms, Ripple Noise 1mV RMS
Temperature Coefficient 200PPM/deg C
Current Stability: 0.1% +3mV, Load stability of negative 0.2%+3mV ,Ripple Noise 2mArms
This is BRAND NEW unit in original box.
It has input voltage power supply selector switch 110V/220V.
It comes with 110V cable, manual, and test leads.
This low noise, high precision unit is perfect for students project lab use, troubleshooting and repairs.
