Hf / vhf low power rf amplifier assembly - nice

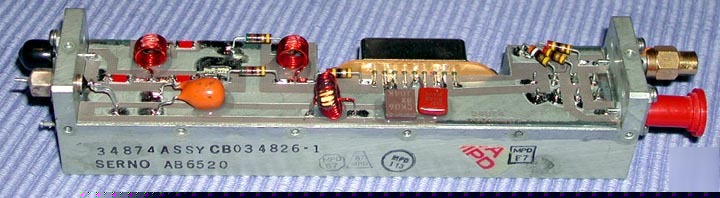

Beautifully constructed, American Made Power amplifier assembly with TRW CA2832H (Hermetic) modular RF Amplifier. The amplifier is rated as: Upper 3dB Frequency = 200MHz, Lower 3dB Frequency = 1.0MHz, Volt Gain Min = 34dB, Noise Figure Max. = 7.0dB, Nom. Supply = 28Vdc @ 450mAdc (Appx). This information came from the Internet and I believe it is correct but I cannot warranty it. There is a LC network (filter) on the input path that probably limits the total frequency range but it can be jumped out if one desires. The output path includes a power splitter that provides a sampled output. This amplifier needs to be heat sunk via conduction to a chassis or a heat sink. . Removed from defunct electronics equipment.
