4501 firerated svr vertical rod exit device

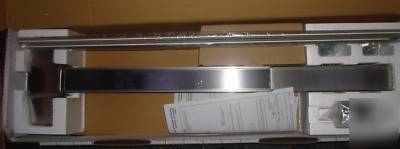

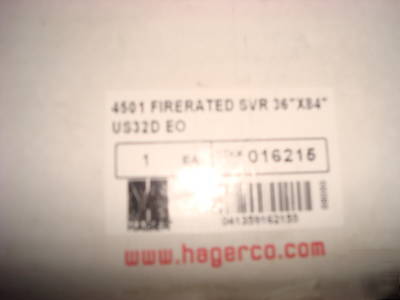

HAGER 4501 FIRERATED SVR 36'' US 32D EO
Applications: - HeavFasteners: - Wood and Machine screws
Latchbolt: - 1/2" throw - top and bottom latches
- Stainless Steel with dead latch
Strikes: - Stainless Steel with Plated rollers - Panic Rated
- Surface applied to frame with slotted holes for easy adjustment
Dogging: - Hex key dogging standard on panic-rated devices
Certifications: - BHMA Certified ANSI A156.3 Grade 1
- UL/cUL Listed for up to 3 hours for ''A'' label doors
- UL10C/UBC 7-2 (1997) Positive Pressure Rated
- UL10B Neutral Pressure Rated
- Hex dogging feature standard on non-fire labeled doors
- Complies with ANSI A117.1 for accessible buildings and facilities
Covers: - Stainless Steel, Zinc
Door Width: - 36'' field sizeable to 30''
- 48'' field sizeable to 36'' - Optional
Door Thickness: - 1 3/4" - Standard
Stile Width: - 5 3/8" - Min. stile width required for single doors and standard 5/8" stop
- 5 3/4" - Min. stile width required for double door and 2" mullion
- 4 7/8'' - Min. stile width required for double doors
- (All stile widths are measured form the door edge
