> 16" w 40" l kent kgs-410AHD surface grinder, prog. auto
16" w 40" l kent kgs-410AHD surface grinder, prog. auto

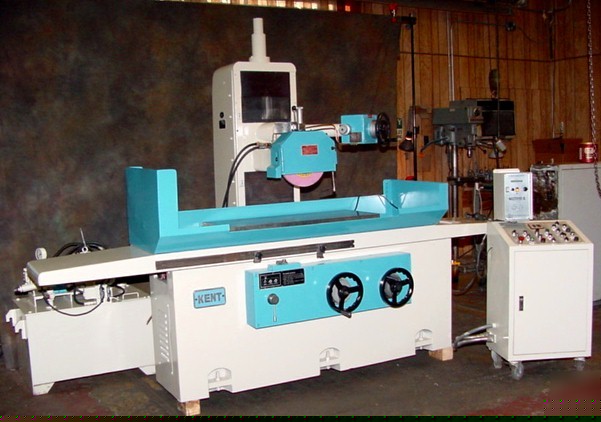

16" W 40" L Kent KGS-410AHD SURFACE GRINDER, PROG. AUTO
16" Width 40" Length Kent KGS-410AHD SURFACE GRINDER, PROG. AUTO IDF, 3X AUTO FEEDS, EMC, COOLANT
16" X 40" KENT SURFACE GRINDER (COLUMN TYPE)
W/PROGRAMMABLE ELECTRONIC AUTOMATIC DOWNFEED
MODEL: KGS-410AHD S/N: 830908-2 NEW: 1983
MAX. GRINDING CAPACITY ..................... 16" X 40"
DIST. FROM SPINDLE CENTER TO TABLE ............... 23"
LONGITUDINAL TABLE TRAVEL ................... 44- 1/2"
CROSS TRAVEL .............................. 17- 11/16"
VARIABLE TABLE SPEED, HYDRAULIC ....... 13' TO 73' FPM
AUTOMATIC CROSSFEED INCREMENT .......... 0.02" TO 0.5"
RAPID CROSS TRAVERSE RATE .................... 60" IPM
CROSSFEED HANDWHEEL PER GRADUATION ............ 0.001"
PER REVOLUTION ............. .................... 0.2"
AUTO DOWN FEED INCREMENT (6 STEPS) ... 0.0002" - .0016"
RAPID VERTICAL POSITIONING RATE ............... 6" IPM
SPINDLE MOTOR .................................. 5 H.P.
STANDARD GRINDING WHEEL ............ 12"D X 1.5" X 5"
APPROX. WEIGHT ............................ 8,250 LBS.
APPROX. DIMENSIONS .................. 98" X 61" X 74"H
W/DIGITAL READOUT DISPLAY FOR VERTICAL AXIS
15.7" X 39.4" "KANETSU" ELECTRO-MAGNETIC CHUCK
(6 YEARS OLD, COST WAS 6K WHEN PURCHASED)
"ELECTROMATIC" NEUTROFIER II" VARIABLE HOLD
SPINDLE WAS REBUILT BY "ATLANTA PRECISION SPINDLES, LLC"
OF LAWRENCEVILLE, GA .... (***) 225-7855 PHONE.
THE REBUILD S/N IS ATLPS #210. THE SPINDLE WAS
REBUILT ON 06/27/2008 FOR A COST OF $2,624.80.
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE**
