> Valve set, 18 valve manifold assembly, 24VAC, MOUSE2807
Valve set, 18 valve manifold assembly, 24VAC, MOUSE2807

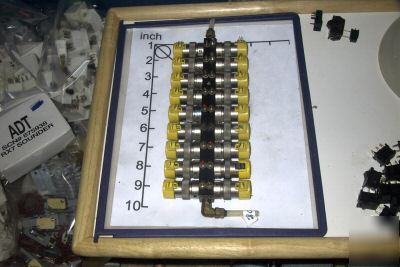

This rack is an aerospace aluminum manifold bar with 18 clifford mouse valves ET-3M attached.
Each valve is 24 volts DC. on the maifold there are tubing fittings for 1/8 tubing and the inlet on the end is for 1/4 pipe.
Normally Closed, Normally Open, Selector, or Diverter
Clippard Minimatic electronic valves are precision-built 2-way or 3-way control valves, utilizing a unique, patented, valving principle. There are no sliding parts. Complete poppet travel is a mere .007". As a result, low power consumption and exceptionally long life are major benefits of this design.
EC models are furnished with .025" square pin connector.
Quick-connect spade lugs are of tinned brass and furnished on all ET models.
EC, ET & EV series valves are 2 & 3-way Normally Closed solenoid valves.
This item is in good working condition, clean, and stored sealed in plastic in a inside clean dry enviroment.
We have hundreds of air parts and acc. Please message for your needs.
