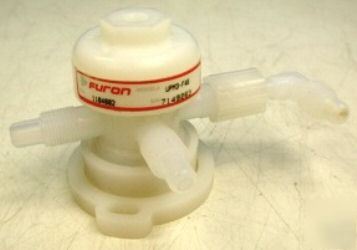

Furon UPM3-F46 teflon 3-way pneumatic diaphragm valve
Furon UPM3-F46 Teflon 3-Way Pneumatic Diaphragm Valve
* Superior life expectancy over competitive valves
* All virgin PTFE/high purity molded PFA wetted flow path
* Double diaphragm containment with leak detection capacity
* Fully swept internal flow path with no entrapment areas to eliminate bacterial growth
* Assembled in class 100 clean room
* Designed to handle up to 120 PSIG (827 kPa) pressure
* Integral swivel base for freedom and ease of mounting
* Designed for primary use in the semiconductor industry for transfer of highly aggressive ultrapure chemicals and de-ionized water.
* UPM series valves are ideal for applications that demand high pressure capabilities and a high CV flow factor.
* Ideal for distribution and diverting media flow path (3-way)
