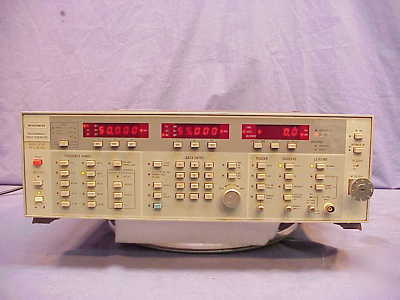

Wiltron 6672B 40-60GHZ prog sweep generator hpib tested
Includes the operator's manual on CD.
Please view the lab photos below for additional information. Minimum Output power: 1mW
The sweep generator is capable of producing both broad (full range) and narrow band sweeps, along with discrete CW frequencies,
across its entire range. It is fully controllable locally from the front panel or remotely (except for power on/off) via the IEEE-488 bus (GPIB).
Sweep frequency or continuous wave operation over the full band
Five front-panel or GPIB selectable sweep-frequency ranges: Full, F1-F2, M1-M2, DF CF, DF M1
Fine-frequency adjustments (Frequency Vernier operation) in CW and DF sweep modes
Three sweep triggering modes: Auto, Line, and External
Eight frequency markers: M1 thru M8
Three marker display modes: Video, RF, Intensity
Alternately sweeps between two sets of front panel sweep parameters, such as Full and F1-F2
Sweeps power over an up-to-15 dB range
Retains front panel control settings in nonvolatile memory for up to 10 years. Whenever the instrument is
turned on, it comes on line having the same control settings and values as when turned off last.
External Leveling Only maximum Power (mW) >1
Harmonics (sub-harmonics dBc) < -20
Residual FM (Measured in 30 Hz-15 kHz bandwidth) (kHz peak) < 50
Input Power 100/120/220/240 Vac 48-63 Hz, 200 VA Max
Options installed: 03 - IEEE-4888 (HP-IB)
THIS ITEM IS NOT FOR SALE OR EXPORT OUTSIDE THE UNITED STATES! Not for sale to Foreign Nationals
Subject to ITAR Regulations. All US Government export control rules and regulations apply to this item!
