Teac rd-135T 8CHANNEL dat data recorder

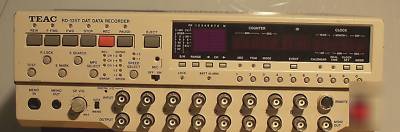

TEAC RD-135T 8 Channel DAT Data Recorder
Recording and Reproduction Method : Analog input and output system by multiplexing PCM recording and reproduction
Recording Format : Conforms to the helical scanning R-DAT format
Number of quantization bits : 16
Recording Data Length : High Order 14 bits of quantization bits
2-head azimuth system for recording
2-head azimuth system for reproduction
Erasure : Erasure method by overwriting
Error Correction Method : Double encoded Reed-Solomon Code System
DM120 tape : x 1 = 2 hours, x 2 = 1 hour
DM 60 tape : x 1 = 1 hour, x 2 = 30 minutes
Start/Stop Time : 2 seconds approximately
Fast-Forward or Rewind : 60 seconds approximately
Input Voltage : 0.5 Vp : 2 Vp : 5 Vp : 20 Vp max
Input Impedance : 100 k unbalanced, nominal
Input Filters : Both an analogue filter and a 64-fold over sampling digital filter are used
Output Voltage : 2 Vp to 5 Vp, load resistance 100 k or more
Output Impedance : 75 nominal
Number of Data Channels and Frequencies:
2 channels 48 kHz sampling DC to 20 kHz
4 channels 24 kHz sampling DC to 10 kHz 8 channels 12 kHz sampling DC to 5 kHz
