Noise/com UFX7107 ufx-7107 noise generator 100HZ-100MHZ

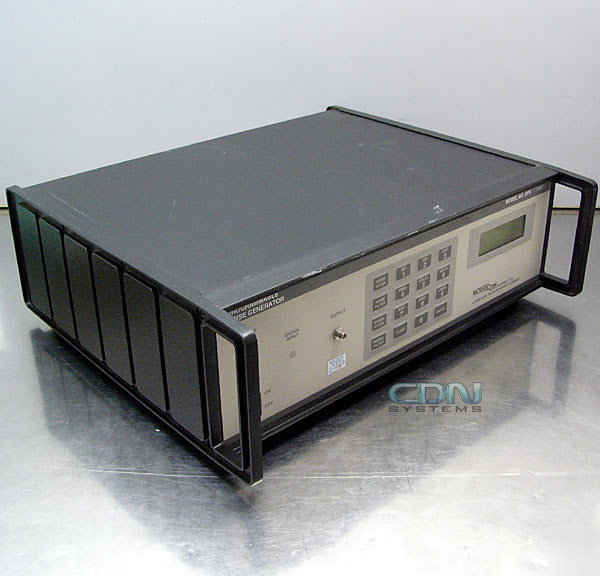

Noise/Com UFX7107 UFX-7107 Noise Generator 100Hz-100MHz
* Output signal: White Gaussian noise
* Attenuator: 0 to 127 dB in 1 dB steps
* Control: Local and IEEE-488
* Output connector: SMA female
* Electromagnetic susceptibility
* CATV gain (tilt) alignment
* Image and spurious rejection tests
* Spectrum analyzer calibration
* Signal to noise measurement
The UFX7000 Series noise generating instruments are extremely easy to use, combining dedicated keys for control of operations and programming with a large 4 x 20 character LCD display for instant status information. They are direct replacements for Noise Com's NC7000 Series instruments. The UFX7000 Series instruments contain a Noise Com amplified noise source that is tuned to provide the best flatness at the instrument output. The amplifier is optimized to deliver an output with a Gaussian amplitude distribution. Noise output power level can be adjusted from 0 to 127 dB in 1 dB steps. The output state is controlled by an RF switch. In the standby state, the noise is terminated into an RF load and in the on state it is directed to the output connector. The instruments allow the noise attenuator, noise filter, signal attenuator values, step size, and signal filter setting to be selected in three ways: at the front panel keypad, remotely via IEEE-488 bus, or automatically under program control. Every front panel operation except instrument on/off is programmable. Programs are easily written using the program key, and information on the display guides the user through the next steps. Nine user-created programs that contain subroutines, delay times, and loops can be stored in non-volatile memory.
