Mc cable aluminum jacket pvc coated 4/0 copper cond.

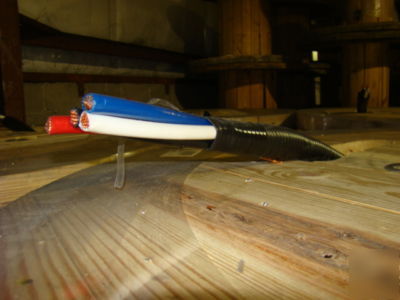

New 1000 ft. reels of MC - Copper Conductor - Aluminum Armor PVC Jacket cable. This cable is approved for direct burial. No PVC pipe required, no pulling, just trench in the cable.

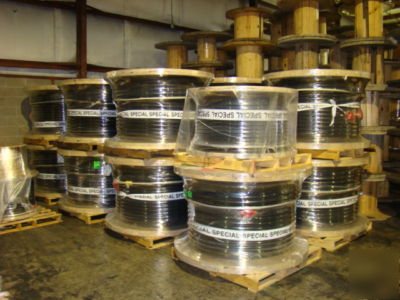

There is a total of 12,000 feet of this cable available, sold in 1000 ft reels.
* Interlocked Aluminum Armor
* 4 AWG bare ground Conductor

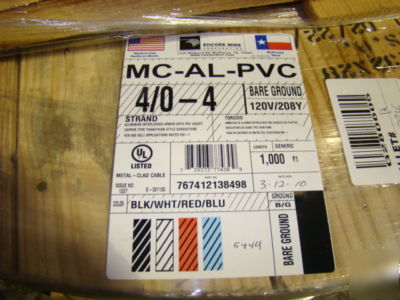

Available in 4/0 AWG, Encore's Metal Clad Cable is constructed with soft-drawn copper, Type THHN/THWN-2 conductors rated 90 degrees C dry or wet locations. Supplied with a 4 AWG bare ground conductor. All conductors are cabled together with a esparator tape, containing the identification print legend, to form the cable core. Interlocked aluminum armor is applied over the entire assembly.
* Feeder, service, and service power distribution in industrial, commercial, institutional and multi-residential buildings.
* Power, lighting, control and signal cable.
* Direct burial applications where identified for such use.
* Exposed or concealed installations.
* Indoors or outdoors installation.
* In hazardous (classified) locations as permitted.
* Embedded in plaster or fished.
* Aerial cable when used on a messenger
* Installation in approved raceways and cable trays.
* Under raised floors for IT equipment conductors and cables - NEC 645.5
* Class I Div. 2, Class II Div. 2, Class III Div. 1 Hazardous Locations
