> New ipg photonics 100W industrial laser dlr-100-at
New ipg photonics 100W industrial laser dlr-100-at

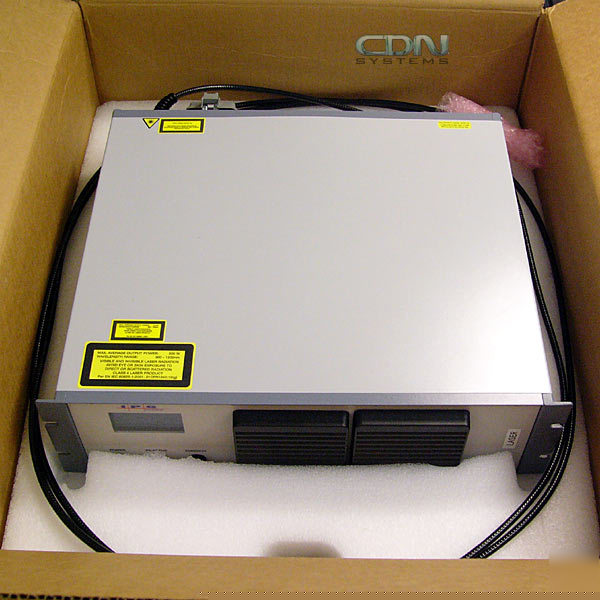

NEW IPG Photonics 100W Industrial LASER DLR-100-AT
The power supply and head are all together in one compact 3U rack-mount package. The light output is a 14ft x 200 m fiber pigtail. There are two different output power warning labels on top; the lower-power output is an aiming laser feature.
* Mode of operation: CW, Single Shot, Repetitively Pulsed, or External TTL
* Central Emission Wavelength: 980nm
* Output Power Tunability: 0-105%
* Pulse Repetition Rate: 0.1-50kHz
* Reliability, MTTF: 100,000hrs
"IPG Photonics' DLR Series industrial grade fiber pigtailed direct diode laser systems have a wall plug efficiency of 40-45%. This compact platform is virtually maintenance free. All DLR Series laser systems are fiber delivered with a very high brightness output through a flexible silica glass fiber sheathed in a metal cable.
"IPG's advanced technology is based on the use of highly reliable single-emitter diodes with estimated lifetimes greater than 100,000 hours of operation even at elevated operating temperatures. The units are completely sealed and provide users with unparalleled performance, repeatability and reliability."
