Network cabling wiremapper and tone tester
THE CABLE TESTER MODEL 2468 IS A VERSATILE UNIT THAT LOCATES, TRACES AND TESTS VOICE AND DATA NETWORK PROBLEMS THAT ARE WIRE RELATED

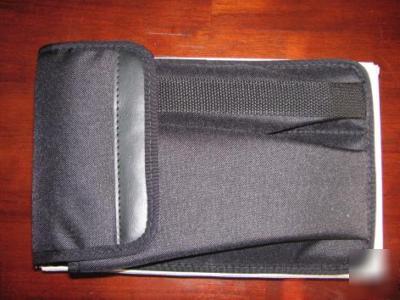

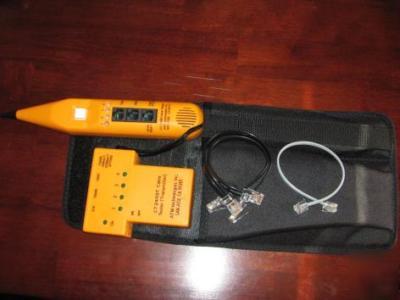

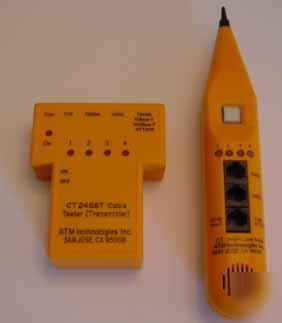

The Model 2468 consists of a 2468T transmitter, 2468R receiver with a built in inductive probe, two modular RJ45 adapter cables, and one RJ11 adapter cable. Both 2468T and 2468R are housed in rugged nylon carrying case.
The model 2468 provides three 8-position modular jacks for the most common CAT-5 cable configurations. These include USOC, 568A, 568B, 10 Base T (Ethernet), and 100 Base T (Fast Ethernet). It also provides a RG6 cable (CATV Coax) 258, and an RJ11 connector for regular "POTS" line 2 Wire Connections.
Open or shorted pairs and general mis-wires are rapidly diagnosed with the 2468. The unit is versatile, compact and economical because it is designed not only to test the correct cable wiring, but also tracing the correct cable. Unlike other testers, the 2468 comes with a standard built-in inductive amplifier probe which eliminates the need for multiple probes.
1. Traces tones to specific wires for cable tracing
2. Verifies for wiring sequences and good connections
3. Identifies open, short, reversed and transposed pairs
