Lincoln electric invertec V205-t ac/dc 120/230V K1855-4

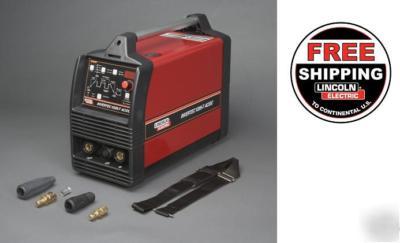

Lincoln Electric Invertec V205-T AC/DC, 120/230V 1 Phase 50/60 Hz
Added Stick Crisp Mode for exceptional Fleetweld 5P and 5P+ (E6010) Performance.
Improved TIG starting. Now starts DC(-) to maintain a sharp tungsten.
Adjustable DC strike mode Allows adjustment of a hotter or colder start depending on the tungsten diameter.
AC/DC inverter for TIG with advanced inverter technology to optimize arc performance.
Adjustable AC output frequency allows the operator to focus the arc minimizing the heat affected zone.
Extended AC Balance Control helps maintain a pointed tungsten to direct the arc in the weld joint.
Selectable waveshapes Square wave for fast travel speeds and excellent puddle control, sine wave for a traditional softer sounding arc, triangular wave to reduce the heat input into the weld at low amperages.
High quality stick welding with such popular Lincoln electrodes as Fleetweld 5P, 35, 37, 180 and Excalibur 7018.
Voltage Reduction Device (VRD). When enabled from the set up menu reduces the open circuit voltage in STICK mode for use in electrically hazardous conditions or when the use of a VRD is required.
200 amps @ 40% duty cycle is the highest output rating in this machine class.
Auto-reconnects for single phase 115/230V 50/60 Hz input allows the flexibility to weld in the shop or take in the field where 230V may not be available.
Weighs in at a mere 38 lbs. (17.3 kg) making it easy to carry around the shop or job site.
Easy to read sequence diagram with LEDs displays selected parameter for easy setting with a single knob.
Fan-As-Needed (F.A.N.) fan only operates when needed to reduce power consumption, noise and dust in machine.
Newly designed using the latest power electronic technology for improved reliability.
Three-Year Lincoln Warranty on parts and labor.
Dimensions (in): 15 H x 8.5 W x 19 D
Rated Output: AC: 140 Amps / 15.6 Volts / 100% Duty Cycle
AC: 200 Amps / 18 Volts / 40% Duty Cycle
DC: 140 Amps / 15.6 Volts / 100% Duty Cycle
DC: 200 Amps / 18 Volts / 40% Duty Cycle
Output Range: 6-200 Amps AC/DC
