1991 matsuura MC700H-50-PC2S machining center

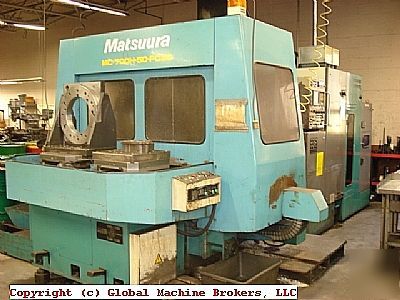

1991 Matsuura MC700H-50-PC2S Machining Center
Pallet longitudinal (x-axis) travel 29.52"
Headstock vertical (y-axis) travel 23.62"
Column traverse (z-axis) travel 24.60"
Pallet top to spindle 1991 MC700H-50-PC2S
Pallet center to spindle gauge line 5.90" - 30.51"
Maximum workload on pallet 1764 lbs
Pallet surface 24 tapped holes M16xP2
Table indexing increment 0.001 deg. w/inductsyn scale
Table indexing speed 1.5 sec/90 deg.
Spindle drive system Gear drive/2 steps-HIGH/Low
Spindle taper 7/24Taper No. CAT 50
Max. spindle torque Eff 95%,30 min rating 613 N.m (62.5kg-m)
Spindle orientation Standard (electrical)
Spindle motor AC 11/15 (cont./30min.)
Rapid feedrate (X/Y/Z) 708/708/708 in/min
Cutting federate 1-5000 mm/min
Continuous manual federate 0-4000 mm/min
Minimum movement increment X/Y/Z 0.001 mm
Minimum indexing increment Rotary table 0.001 deg
Type of pallet change Shuttle type
Pallet Clamping power 62.72 K.N
Pallet changer weight pallet / pc 309lbs
Main spindle motor AC 11/15 cont. ./30min
Feed motor X:axis model 20s AC 2.8 motor at 1500rpm
Y:axis model 10s AC 2.8 motor at 1500rpm
Z:axis model 20s AC 2.8 motor at 1500rpm
4th Axis model 10s AC 1.8 motor at 2000rpm
Lubrication pump motor kw 0.02
Spindle oil cooler motor kw 0.8
Input power AC200V/220V+/- 10%, 3. 50/60Hz+/-1Hz
Except above, transformer is required KVA 42
Air Source Mpa 0.54-0.93 5 - 9 kg/cm2
Machine weight 24,251lbs (including Control)
100 position automatic tool changer
Dual Augur type chip conveyours
