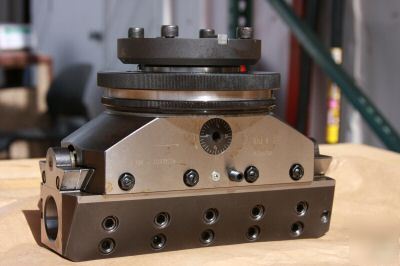

Narex vhu 160 boring and facing head code M455
This boring head appears to be an unused surplus item in excellent condition.
Includes everything shown in photos.
* Operation Accuracy: +-.0002".
* Quick Return per Revolution: .160".
* Diameter of Tool Post Holes in Slide: 1-1/4".
* Height of Head without Shank: 5".
* Maximum Adjustability of Slide: 5.750". Maximum Diameter of Slide: 11.5".
*Various Automatic Slide feeds per revolution:
.002", .004", .006", .008". Width of Head: 8.725". Boring and Facing Range: 0 up to 31".
Automatic Feed (mm.rev-1) 0.05-0.10-0.15-0.20
Accuracy of Adjustment: 1 div. = 0.01mm/
Diameter of Clamping Holes dH8(mm) 32
SCOTT / R041210 / PR SF 3 / #1600
