Topcon (gts-2 total station) electronic distance meter

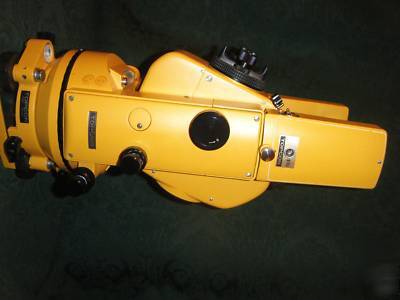

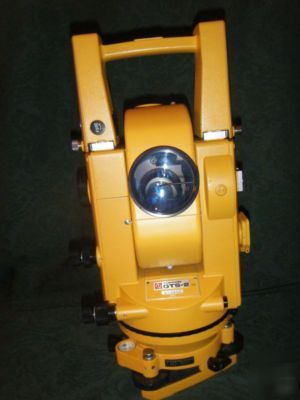

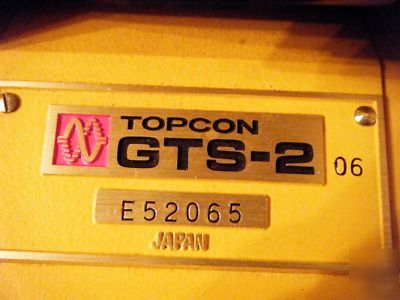

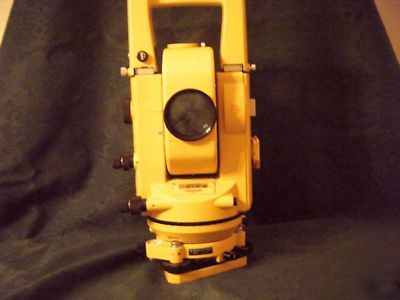

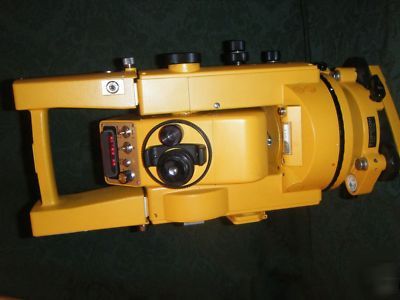

Topcon GTS-2 06 - Electronic Distance Meter (Model: E52065). "Geodetic Total Station"

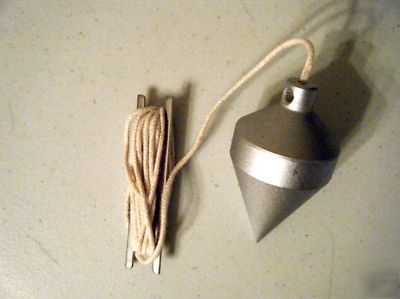

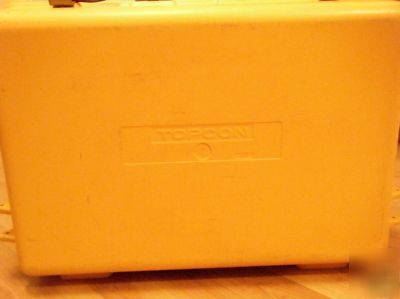

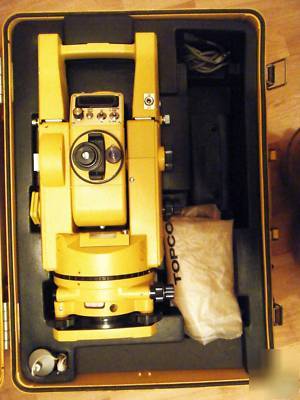

Included in Sale: Topcon Electronic Distance Meter w/case. Also included: Battery, Cable for Charger, Complete Tool Pouch, Plumb Bob, Rain Shield, Lens Cap. Manual & Charger not incl.
Details: This model is in excellent condition. You would be hard pressed to find this unit in better condition with less hours on it. It was inherited from a family member who owned a surveying company and took very good care of his equipment. It has been tested and is in perfect working order. I am not an expert in this area but have done my research and should be able to answer any additional questions if needed.

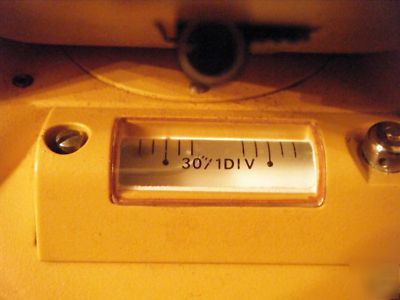

Specifications: Telescope Length: 169mm Aperture: 40mm(EDM:55mm) Magnification: 30x Image Resolving power: 1.8" Field of view: 1 degree 20' Resolving power: 3" Minimum focus: 1.5m Horizontal/Vertical Circles Diameters: 82mm (horizontal) /70mm (vertical) Division: 1 Degree (numbered) Minimum digital reading: 6" (Model GTS-2 06) Automatic Vertical Indexing Range + - 5' Setting Accuracy; + - 0.25" Level Sensitivity Circular Level: 10'/2mm Plate Level: 30"/2mm Distance measurement; Normal atmospheric condition; With single prism 1,100m (3,600 ft.) With triple prisms: 1,700m (5,600 ft.) Ideal atmospheric condition; With single prism:; 1,400m (4,600 ft.) With triple prisms:; 2,000m (6,600 ft.) Measurement Accuracy; + - (5mm + 5ppm) m.s.e. Measurement Display; 8 digits; maximum display 1999.999m (SHORT) or 9999.999m (LONG) as delivered. Measurement Unit; Meter (switchable to feet); 1m = 3.280833 ft. Measurement Time; FINE mode; 5 sec. (SHORT); 7 sec. (LONG) COURSE 1 mode; 2 sec. (SHORT); 3 sec. (LONG) COARSE 2 mode 1 sec. (SHORT); 2 sec. (LONG) *SHORT/LONG modes and COARSE 1/COARSE 2 modes changed with option switches Least Count in Measurements; FINE (millimeter); 1mm (0.005 ft.) COARSE (centimeter); 10mm (0.02 ft.) Measurement Method; Auto-tracking Atmospheric Correction Range; -40ppm to +80ppm, in 2ppm increments Prism Constant Correction Range; -80mm to + 20mm, in 1mm increments Ambient Tempurature range -20 degree C to + 50 degree C (-4 degree F to + 122 degree F) Optical Plummet Telescope; Type; Optical plummet built into Tribrach Image; Erect Magnification; 2.2x Focusing Range; Universal focus Field of view; 5 degree Size: Instrument; 275mm x 195mm x 169mm (10.8 in x 7.68 in x 6.65 in)(without carrying handle or clip-on battery pack Plastic carrying case; 536mm x 375mm x 240mm (21.2 in x 14.8 in x 9.45 in) Weight: Instrument; 6.0 kgs (13.2 lb) (without carrying handle and clip-on battery pack) Plastic carrying case; 5.5 kgs (12 lb)
