New * sealed* allen bradley ab 1769-IT6 /a 1769IT6 01/10
Rockwell Automation > PLC & HMI > Controllers > SoftLogix > 1769-IT6/A
Allen-Bradley 1769-IT6 CompactLogix 6 Channel Thermocouple/Mv Input Module, Series A
Allen-Bradley 1769-IT6 CompactLogix 6 Channel Thermocouple/Mv Input Module. Number of Inputs: 6, plus 2 cold junction sensors; Sensors Supported: Thermocouple types: J, K, T, E, R, S, B, N, C, 50 mV, 100 mV; Power Supply Distance Rating: 8 modules.
Allen-Bradley 1769-IT6 thermocouple/mV module receives & stores digitally converted thermocouple and/or millivolt (mV) analog data from any combination of up to six thermocouple or millivolt analog sensors. Each input channel is individually configurable via software for a specific input device & provides open-circuit, over-range and under-range detection & indication. The 1769-IT6 receives +5V DC & +24V DC power from the 1769 Compact bus. Contains a removable terminal block with two cold-junction sensors.

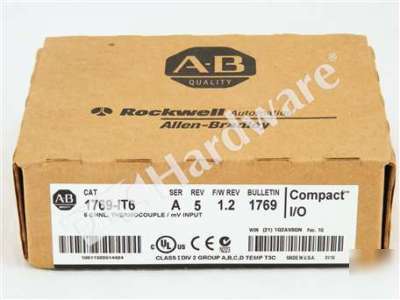

One New Factory Sealed Allen Bradley 1769-IT6 Series A, CompactLogix 6 Channel Thermocouple/Mv Input Module.
The unit is Series A, Rev. 5, F/W Rev. 1.2, Pkg Date 01/10.
