Berkeley varitronics systems class a gator transmitter

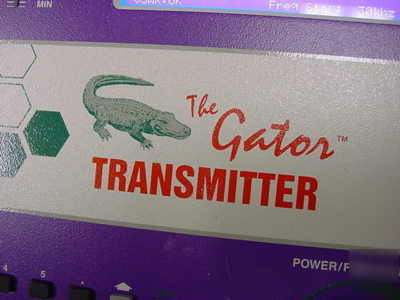

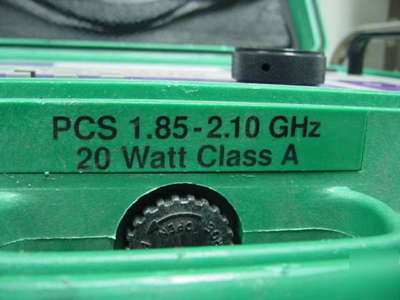

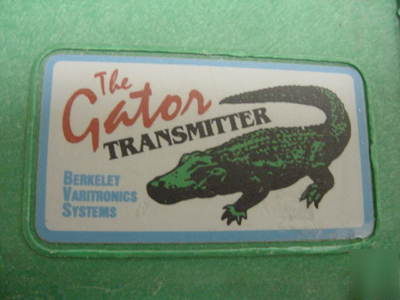

Berkeley Varitronics Systems Gator 1850-2100 MHz Portable Stimulus Test Transmitter
Delivers up to 43 dB or 20 Watts for testing field applications or coverage
All Gator transmitters feature Class A power amplification, rugged, weatherproof housing and built-in VSWR antenna protection. It s light weight makes Gator a versatile transmitter suited for both field and laboratory work.
PERFECT FOR MEASURING SIGNAL PROPAGATION, POSITIONING ANTENNAS, SETTING POWER LEVELS OR VALIDATING RF COVERAGE.
* Pure spectrum Class A power amplifier
* Power amplifier with continuous adjustable power output 0.1 dB over 32 dB range

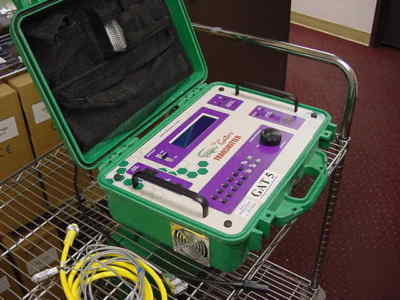

* Water resistant, rugged 18 x 15 x 6 ABS plastic case
* Microprocessor-controlled with front panel soft-keys or remotely controlled with an internal modem allowing for user programmable modulation schemes, power levels, channels, and frequencies
* Calibration/Usage intergrated hours meter

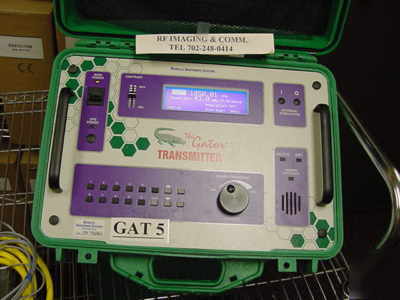

* 240 x 64 LCD with vacuum fluorescent backlighting
* VSWR antenna protection and internal forward and reverse measurement
* Built-in thermal overheat protection for amplifier
* Battery backed-up SRAM stores all user selectable parameters in the event of a power loss

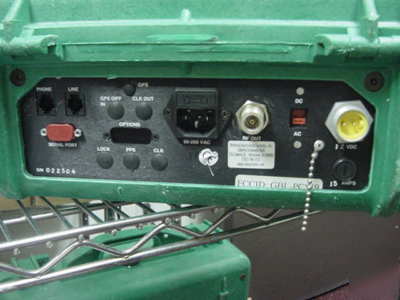

* Powered from 110-240 VAC 50/60 Hz, UL, CSA approved
* CW identifier for FCC CP identification
* All parameters can be adjusted remotely via RS-232 or the internal modem or DTMF signaling tones
* 90 DAY WARRANTY PARTS AND LABOR
* CALL PAUL AT 1-(***)-248-0414
* EMAIL ME AT ****@rfimage.com
* NEW LIST OVER $8,950.00 EACH- NEW LIST
