New brand , fluke 1550B megohmmeter

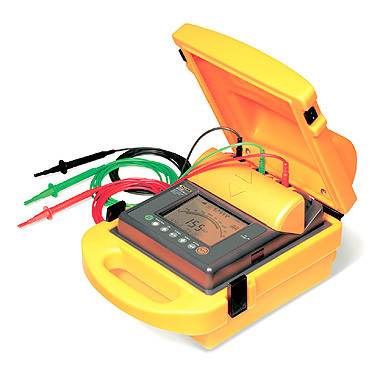

Brand New, Fluke 1550B MegOhmMeter
****** LIQUIDATION SALE ******
* Test voltages of 500 V, 1000 V, 2500 V, 5000 V
* Warning voltage function alerts the user that line voltage is present and gives the voltage reading up to 600 V ac or dc
* Guard system eliminates the effect of surface leakage current on high-resistance measurements
* Large digital/analog LCD delivers detailed measurement data
* Cable or insulation capacitance
* Ramp function (0-5000 V dc) for breakdown testing
* Timer for dielectric absorption and polarization index test
* 99 memory location store all measurement parameters
* High capacity rechargeable batteries
* Mobile charging adapter for dc charging
* Includes Quicklink 1550 software and optical interface cable for downloading to a Windows PC
* Custom soft case for tester and accessories
* Includes heavy-duty leads, probes and alligator clips
* Test leads and low-leakage probes
* Soft carrying case with waterproof bottom
Insulation Resistance Measurement
Greater than 1 mA and less than 2 mA
Insulation test voltage accuracy
-0 % to + 10 % at 1 mA load current
Induced ac mains current rejection
Charging rate for capacitive load
Accuracy: (15 % rdg + 0.03 F)
Range: 30 V to 600 V ac/dc, 50/60 Hz
0 to 99 minutes; settable in 1 minute increments; indicated to within 1 second
0 % to 100 % of selected test voltage, or until breakdown
All stated accuracy tolerances apply to the temperature range 0 C to 35 C (32 F to 95 F). For operating temperatures between -20 C to 0 C (-4 F to 32 F) and 35 C to 40 C (95 F to 104 F), these tolerances double
12 volt, lead-acid, rechargeable
Charger input (DC car adapter)
Note: At higher temperatures, the battery requires more frequent charging.
Test voltage - Number of tests
-20 C to 40 C (-4 F to 104 F)
-20 C to 65 C (-4 F to 149 F)
80 % at 31 C decreasing linearly to 50 % at 40 C
EN 61010-1, CAT III, 600 V, EN61557, PARTS 1 & 2
Requires a PC running Windows 95, 98, Me, 2000, NT4.0
