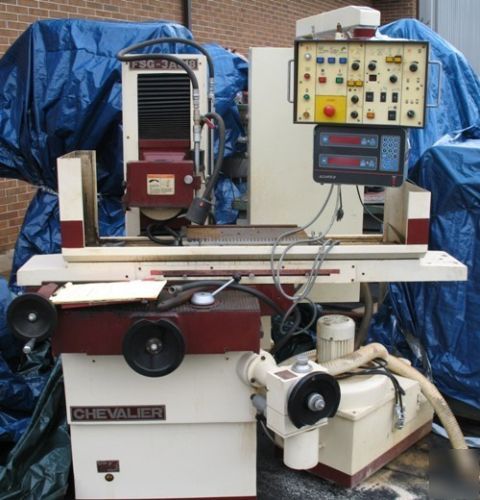

8" W 18" L Chevalier FSG-3A818 SURFACE GRINDER, AUTO ID
8" Width 18" Length Chevalier FSG-3A818 SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS, 2X DRO, CLNT, CH
8" X 18" CHEVALIER PRECISION SURFACE GRINDER
W/MICROPROCESSOR CONTROLLED AUTOMATIC INCREMENTAL DOWNFEED
MAX. GRINDING CAPACITY ...................... 8" X 18"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC .... 19- 3/4"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ....... 21"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............. 9"
MAX. CROSSFEED TRAVEL, MANUAL ................ 9- 1/2 "
DIST. FROM SPINDLE CENTER TO TABLE ........... 18 "
VARIABLE TABLE SPEED, HYDRAULIC ......... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........... 0.02" TO 0.24"
RAPID TRAVEL, CROSS FEED ...................... 48" IPM
CROSSFEED HANDWHEEL, PER GRADUATION ........... 0.001"
PER REVOLUTION ........... 0.2"
AUTOMATIC INCREMENTAL DOWNFEED ......... 0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION ................................. 0.1"
RAPID TRAVERSE RATE ......................... 13" IPM
SPINDLE MOTOR .................................. 2 HP
STANDARD GRINDING WHEEL .......... 8" DIA. X 1/2" X 1.25"
APPROX. WEIGHT .............................. 2,620 LBS.
APPROX. FLOOR SPACE REQUIRED ........ 86" X 61" X 75"H
FULLY PROGRAMMABLE AUTO-CYCLE CONTROL W/DIGITAL DISPLAY
-AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
-SPARKOUT CYCLE ADJUSTABLE FRO 0 TO 9 TIMES
-AUTOMATIC WHEELHEAD RETRACTION @ COMPLETION OF CYCLE
-POWER RAPID WHEELHEAD POSITIONING
TABLE GUIDEWAYS ARE HARDENED AND GROUND
BALL BEARINGS FOR FRICTIONLESS TABLE MOVEMENT
ALL SLIDEWAYS ARE LAMINATED WITH TURCITE-B & PRECISELY
"MICRO" FINE FEED FOR VERTICAL AXIS (.0001" GRAD.)
8" X 18" FINE DIVISION ELECTRO-MAGNETIC CHUCK
W/NEUTROFIER CONTROL ON MACHINE'S CONTROL CONSOLE
COOLANT SYSTEM, COMPLETE W/SPLASH GUARDS
2 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLT OPERATION
MACHINE WAS PURCHASED FROM "CENTRAL GEORGIA TECHNICAL COLLEGE, MACON GEORGIA". tHIS IS A UNIQUE OPPORTUNITY TO
GET A MACHINE WITH ALMOST NO USE ON IT, FROM A COLLEGE!
**TRULY AS NEAR TO NEW CONDITION & APPEARANCE AS POSSIBLE**
