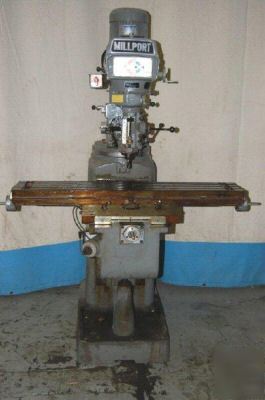

#3KVII millport vertical mill #25312
New 1990, Serial No 0056, Model 3KVII
3 HP Variable Speed Spindle Motor
Table Dimensions (Overall), W x L....... 10" x 50"
Table Longitudinal Travel (X-Axis)...... 30"
Saddle Cross Travel (Y-Axis)............ 16"
Knee Vertical Travel (Z-Axis)........... 16"
Quill Travel............................ 5"
Ram Travel.............................. 22.19"
Spindle-Center To Body, Minimum......... 5.31"
Spindle-Center To Body, Maximum......... 30.5"
Spindle-Nose To Table, Maximum.......... 18.5"
Quill, Diameter......................... 3.375"
Spindle Speeds, Range................... 60 to 4200 RPM
Spindle Motor, Horsepower/RPM........... 3 HP/1730 RPM
Floor Space Required, W x D............. 5'3" x 4'11"
Overall Height.......................... 5'10"
Weight, Approximately................... 2850 LBS
