Agilent N5746A 0-40V 19A dc power supply usb lan gpib

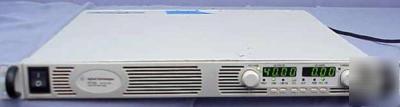

This sale is for a Nice used Lab Tested Agilent N5746A 0-40 Volt 19 Amp 760 Watt DC Power Supply.
Supply has been tested UNDER LOAD and works well. Current Agilent product.
Sold with a 7 Day Right of Inspection
The single-output, Agilent N5746A 760 Watt, GPIB, LAN, USB, LXI Class C N5700 series provide 1U high size,
universal AC input, analog/resistance control of output voltage and current, as well as parallel and series connection
of multiple supplies. The Agilent 760W, single output N5746A is a compact 1U package that offers solid
performance and a variety of basic and enhanced capabilities
Small high density 1 U package
Built-in voltage and current measurement
Full protection from over-voltage and over-current
85-265 Vac Universal AC input
Command compatibility for Sorensen DLM and Xantrex XFR DC Supplies
LAN, USB, and GPIB interfaces standard
Fully compliant to LXI Class C specification
Load Effect (change from 10% to 90%) Voltage: 6 mV
Load Effect (change from 10% to 90%) Current: 8.8 mA
Load Transient Recovery Time: 1 ms
Built-in Ethernet, USB 2.0, and GPIB interfaces enable easy system connections
The built-in Web server provides remote access and control of the instrument viaa standard browser such as
Microsoft Internet Explorer. Using the Web browser, you can set up, monitor and operate the N5746A remotely.
All N5700 models have universal AC input so they can be automatically operated from any AC mains input
voltage worldwide. They can be operated from line voltages of 85 265 Vac, 47 to 63 Hz, with no switch to set
or fuses to change when you switch from one voltage standard to another. They also provide power factor correction
Click Here for Agilent Data Sheet
