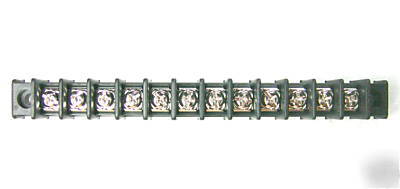

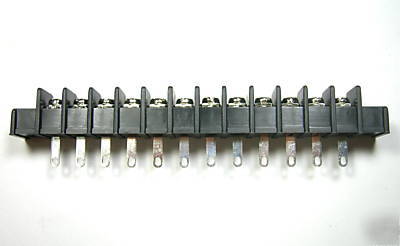

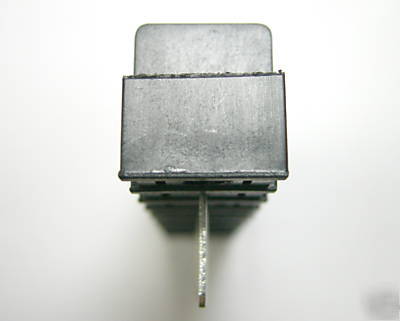

50PC pcb terminal block ggb-40-08 A12P 12P 10MM 20A300V
Housing material : PA66, UL94V-0, black
Terminal material : Brass, 0.8t, Tin plated
Screw material : Steel, M3.5, Nickel plated
Working temperature : -40~+105C
Insulation withstand voltage : AC2000V, 1min
Insulation resistance : >500Mohm, 500VDC
Soldering Pin size : 11.8x3.6x0.8mm, LxWxT
Out side dimension :142x15.5x18.5mm, LxWxH
made by G&D Great Dragon, Taiwan
