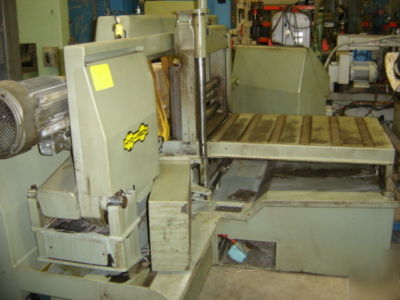

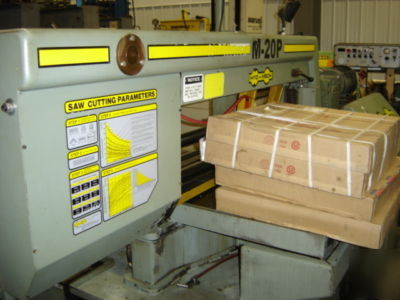

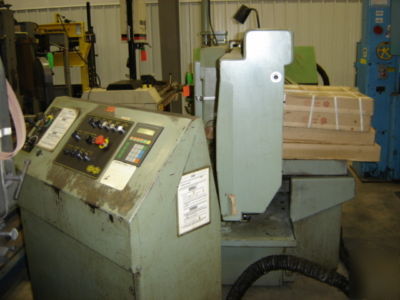

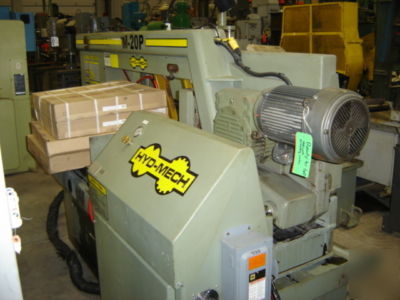

6185 hyd-mech m-20 20" x 30" swivel horizontal band saw
HYD-MECH MODEL M-20P PIVOT STYLE MITERING
Capacity Rectangle 20" x 30" Round 20" diameter 45 square 19"x20" 45 round 20" diameter 30 /60 square 12"x20" 30 /60 round 14" diameter
Blade dimensions 20'6" long 1 " wide .050 thick
Hydraulic drive 3 Hp Hydraulic system 900 PSI
Coolant tank capacity 9 US gal
Shuttle stroke 0-33" single stroke -multi-indexing standard
Table height 32" Max work load 8000 lbs
Motor 480 volt 60 Hertz 3 phase
Machine is equipped with approx 14' of roller conveyor.
