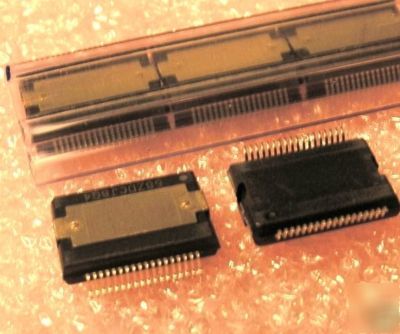

TAS5414 digital audio power amp chip 4 channel 116W (X2
4 Channel Class D Digital Audio Power Amplifier
116W per channel in Parallel BTL, 21 V DC
Burr-Brown / Texas Instruments.
* Four-Channel Digital Power Amplifier
* Four Analog Inputs, Four BTL Power Outputs
* Typical Output Power per Channel at 10% THD+N
* 28 W/Ch Into 4 ohm at 14.4 Vdc
* 45 W/Ch Into 2 ohm at 14.4 Vdc
* 58 W/Ch Into 4 ohm at 21 Vdc
* 116 W/Ch Into 2 ohm at 21 Vdc PBTL
* Channels Can Be Paralleled (PBTL) for 1-ohm Applications
* THD+N < 0.02%, 1 kHz, 1 W Into 4 ohm
* Patented Pop- and Click-Reduction Technology
* Soft Muting With Gain Ramp Control
* Patented AM Interference Avoidance
* Patented Cycle-by-Cycle Current Limit
* Four-Address I2C Serial Interface for Device Configuration and Control
* Configurable Channel Gains: 12-dB, 20-dB, 26-dB, 32-dB
* Load Diagnostic Functions:
* Output Open and Shorted Load
* Output-to-Power and -to-Ground Shorts
* Patented Tweeter Detection
* Protection and Monitoring Functions:
* Short-Circuit Protection
* Load-Dump Protection to 50 V
* Fortuitous Open Ground and Power Tolerant
* Patented Output DC Level Detection While Music Playing
* Overtemperature Protection
* Over- and Undervoltage Conditions
* 36-Pin PSOP3 (DKD) Power SOP Package With Heat Slug Up for the TAS5414A
* Designed for Automotive EMC Requirements
* Pb-Free Soldering Supported
* ISO9000:2002 TS16949 Certified
* -40 C to 105 C Ambient Temperature Range
The TAS5414 and TAS5414A are four-channel digital audio amplifiers designed for use in automotive head units and external amplifier modules. The TAS5414A and TAS5414 provide four channels at 23 W continuously into 4 ohm at less than 1% THD+N from a 14.4-V supply. Each channel can also deliver 38 W into 2 ohm at 1% THD+N. The digital PWM topology of the TAS5414A and TAS5414 provides dramatic improvements in efficiency over traditional linear amplifier solutions. This reduces the power dissipated by the amplifier by a factor of ten under typical music playback conditions. High efficiency is accomplished without the need for complicated power-supply schemes. Multiple TAS5414As or TAS5414s can be synchronized to meet high-channel-count applications.
The TAS5414A incorporates all the functionality needed to perform in the demanding OEM applications area. They have built-in load diagnostic functions for detecting and diagnosing misconnected outputs to help to reduce test time during the manufacturing process.
36 Pin SSOP with exposed topside metal thermal pad
