Hp - agilent 54645D mixed signal oscilloscope w/ 54657A

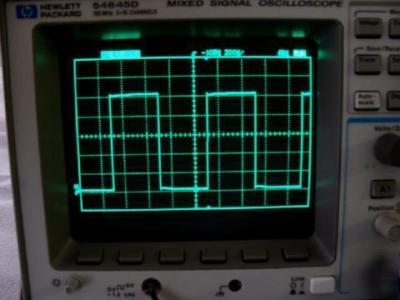

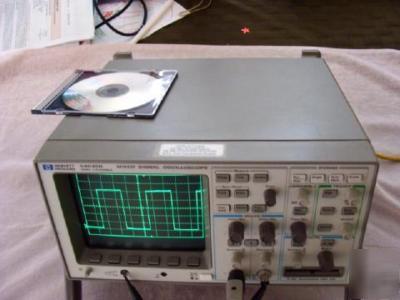

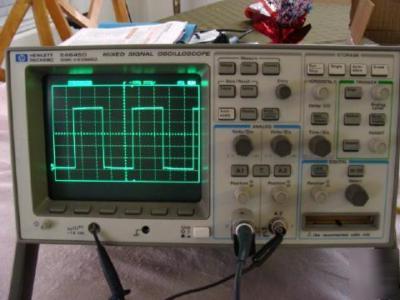

The HP / Agilent 54645D MegaZoom 2+16 channel, 100-MHz 200-MSa/s, mixed signal oscilloscope focuses on helping you verify and debug your mixed analog and digital designs. The 54645D is the only mixed signal oscilloscope with 2 analog and 16 timing channels that simultaneously view both analog and digital signals. The 54645D offers the 1 megabyte Mega Zoom deep memory that lets you capture long time spans with a high sample rate so you can analyze fine details when dealing with slow analog and fast digital signals.
LOGIC ANALYZER FEATURES: *** 16 timing channels (two 8-channel pods) *** 400 MSa/s one pod; 200 MSa/s two pods *** 2 M points/ch one pod; 1 M points/ch two pods *** TTL, CMOS, ECL thresholds *** 5 ns peak detect *** Advanced logic-triggering modes.
For more information from the date sheet: http:// /vt/assets/pdfs/HP_54645D.PDF

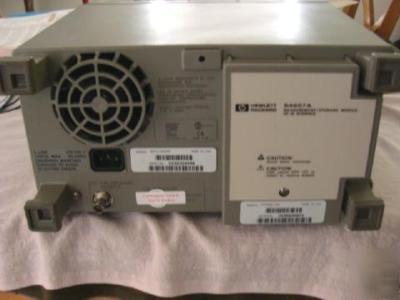

The HP 54657A Measurement Storage module with GPIB interface works directly with the HP 54600 series of oscilloscopes. It offers 19 different automatic measurements including waveform math functions and mask testing. It also offers storage (up to 100 nonvolatile memories), and unattended waveform monitoring.
HP 54657A FEATURES: *** FFT feature allows you to analyze your signal in the frequency domain *** Adds GPIB and remote programming capability *** Can store up to 100 traces in nonvolatile memory *** Adds unattended waveform monitoring - can store out-of-limit traces.
