New cnc router cnc engraving cutting machine low price

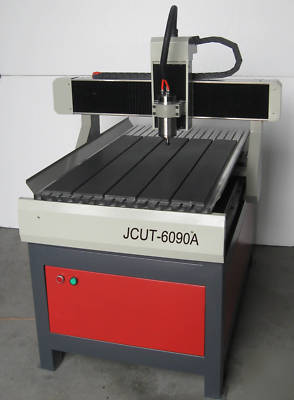

The JCUT6090A CNC Cutting Engraving Machine Made In China
1) Machine body: whole cast iron
2)Guideway:XYZ-axis use clindircal guideway
4) Work dimensions: 600 x 900 x 80mm
5)Body dimensions: 800 x1, 200 x 1,300mm (with bracket)
6) Z-axis working area: 80mm or 150mm
7) Max. Feeding height: 900mm or bigger
8) Cut thickness of material: 40mm
10) Working speed: 0 - 5000mm/min
11) Mechanical precision: 0.01mm
12) Software: type 3 software, Artcut software, Artcam software
13) Max. Power consumption: 1.6kW
14) Power source: AC 110/220/50-60Hz
15) Driver type: stepper motor(xyz -sxis use 57BYG motor)
17) Spindle: 1.5kW variable speed, water-cooled motor
18) Spindle speed: 0 - 24,000rpm
18) Blade diameter: 3.175mm, 4mm,6mm
19) Control system: (NCSTUDIO)
20) Command: G code, u00, mmg, plt
21) Running circumstance temperature: 0 - 45 C
22) Relative humidity: 30% - 75%
Packing dimensions: 900 x 1350 x 1400mm
Net weight: 320kg (with bracket)
Can be used for advertisement engraving, advertisement cutting, stone processing Cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
Hope a lot of business can be concluded between us.
