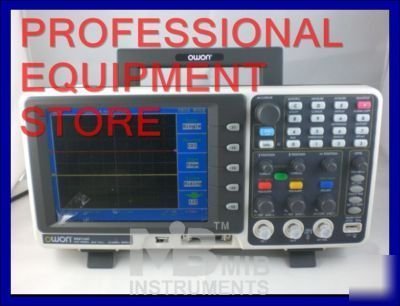

MSO7102T 100MHZ digital oscilloscope logic analyzer 1G
MSO7102T 100MHZ Digital Oscilloscope Logic Analyzer 1G
Identified signals logic information
100MHz Bandwidth, up to 1G/s real time sample rate
16 optional logic input channels
Max 6000 points record length for each channel
Dual channels + External trigger + Logic Analyzer
7.8 inch color LCD display for large view
Support USB data transmission, display by real-time
Advanced trigger functions: Edge trigger, Bus trigger, Pattern trigger,Sequential queue trigger, Distributed queue trigger and Data width trigger.
1GS/s (single channel)500 MS/s(dual channels)
1GS/s (single channel) 500MS/s(dual channels)
7.8 inch colored LCD, 256 colors, STN/TFT screen, 640 480 pixels
5ns/div-5s/div(step by 1-2.5-5)
Interval( T)accuracy(full bandwidth)
Single (1 interval time+100ppm reading+0.6ns)
Average>16 (1 interval time +100ppm reading+0.4ns)
8bits resolution (2CH simultaneously)
300V(DC+ AC Peak) (1M input impedance,ProbeAttenuation rate 10:1)
1M 2% in parallel with 20pF 5pF
Edge Video Alternate Mains supply
Normal, Peak detection, Average
Max. 6000 points on each channel
PK-PK, Average, RMS, Frequency, Cycle.
Edge trigger, Bus trigger, State trigger, Dataalignment trigger, Data width trigger
Pre-trigger, mid-trigger, Post-trigger
Binary system, Decimal system, Hex
The current electronic products become more complicated as the number of digital circuits and universa l serial bus increase. It results in the edge become vague to choose a suitable testing instrument.Thetesting signa l often mixed by analog and digital signal,so the engineer would like to get an instrumentcould test both of analog and digital signals. To meet their demand, our MSO series was launched. -MSO series Mixed LA-oscilloscope
MSO series combined digital storage oscilloscope & logic analyzer functions, the performance is remarkable, the functions is powerful. It enables user to analysis the analog signals and digital signal on same instrument to save your costs.
Up to 60M bandwidth, up to 500MS/s Sample rate (Real-time)
Max. Storage 6000 points each channel
Adjustable trigger sensitivity
Advanced trigger functions: Edge trigger, Video trigger and Alternate trigger,Mains supply trigger
20S/s 500MS/s Sample rate (step by 1-2-5)
Max. 4M record length for each channel
Threshold Level setting (0 4V)
Random trigger position setting
Flexible data searching methods
Various advanced trigger functions
Support USB, RS232 data transmission and U-storage.
As an effective tool of analog circuit analysis, Digital storage oscilloscope is familiar to most of engineers. OWON Mixed Signal Oscilloscope is different from other test instruments. The cus- tomers can obtain both high capability oscilloscope and Logical analyzer in one portable signals instrument. By integrating the analog and digital, we can show, trigger and analyze two types of in one instrument.
Powerful test and measuring function
OWON MSO series have perfect test and powerful analyze function, which includes Multi-trigger function, Bus setting,Threshold Level adjustment setting, Data searching, Digital filter,Save and recall trigger setting, Auto bus measuring, Cursor measuring, Pre-trigger setting, Code Setting, USB storage and so on.The application cover basic digital circuit such as TTL and CMOS,through these functions, it can correct the digital products fast,and save the time for R&D development.
Capture and analyze the burr signals
The time sequence waveform generated in the digital circuit always interfered by unexpected burrs. In this case, the logical analyzer can do nothing about the shape and measurement of the burr but only analyze high and low level. Therefore, the engineer needs an oscilloscope as an assistance to test the burr and take measurement to solve the problem accordingly
Complementary function improve the measurement veracity
The waveform of Logical analyzer is got from comparison between test signal and Threshold Level. Incorrect Threshold level will lead to confusion for the whole testing time sequence. OWON MSO5022 can help you understand time sequence information exactly and set Threshold Level correctly.
Intuitionistic operation panel
The operation panel of MSO5022 still use OWON consistent appearance which is familiar to many users, by this way, the users can save much time to know and operate our product. Widespread education tool. With our competitive price,MSO5022 can be widely used in many schools as a useful instrument for the education of digital circuit, just like our widespread oscilloscopes.
Mainly occasions for Logical analyzer
1.To test multi-signal at the same time
2.To test digital signal same as hardware test
3.To trigger the high and low level models on several wires at the same time and examine the results.
4.To trace the execution of software in the system timely.
1.Electronic circuit, communication, optoelectronics, etc.
2.R&D design and debug in the digital circuit.
3.Education and training in the digital circuit and signal.
Digital real-time sampling technology
With the advanced digital sampling technology enable to debug and detect signals for two chan-nels simultaneously and efficiently. Capture unrepeatable signal with high frequency such as bu- rrs or exceptional edge completely therefore engineers are able to control any signal changes.
High precise sampling technology
MSO series adopts high precise sampling technology,collecting and testing time sequence graphics which input from 16 channels simultaneously to make every detail changes of graphics are under engineer s control.
The strong trigger functions enable to detect the time sequence reliability and accuracy by any methods. As a tool of logic analysis, how trigger function perform will decide the practicability for this instrument. The trigger functions include Edge trigger, Bus trigger,Pattern trigger, Seq- uential queue trigger, Distributed queue trigger and Data width trigger. Flexible setting for trigger position The unexpected event or bug in the digital circuit often happen at certain moment, the analysis should base on the event changes before and after that moment. So it is a very important part for an engineer to observe the time sequence changes before and after that trigger point. The trigger point for MSO5022 is adjustable which support the engineer to analyze the specific data queue timely and effectively. Bus settings function analyze the time sequence quickly and effectively To analyze logical time sequence, we need signals collected from many channels, the result is there are too many channels and data are being shown on the screen, which is very hard to make analysis. For example, for those often used buses such as address bus or data bus are composed of multidigit data,if we can choose part of them as one independent bus,the number of channels are reduced and is convenient for us to observe the change of this bus. Actually, it has been done by MSO series.
As a standard for high and low level of digital signal, whether the threshold set is reasonable can determine the veracity of the whole measurement. Our MSO series supply threshold set which ranges as 0 4V and many sets of independent threshold set to meet the strict testing condition.
Trigger position or the analysis for a certain pattern are the keys in debugging logical circuit, and how to lock the trigger position quickly or search the expected bus pattern are the foundation of improving debugging efficiency. Our MSO series supplies the search modes such as trigger posit- ion, bus pattern, state set, etc to locate the time sequence exactly. Digital filter The random of noise or glitch in the digital circuit can effect the analysis of the whole waveform or change the time sequence result. Our digital filter function is able to inhibit the burrs effecti-vely when the signals change on the bus, and make the waveform clear to be analyzed. Storage setting For a complicated circuit,it is essential to set different triggers to analyze time sequence,and the same trigger set usually be used repeatedly. If we reset the trigger condition, much time and energy will cost. That s not problem for our MSO series, because we could save the trigger set,
the repeatable trigger is available only to recall the save one.
Click the picture to view large picture
5) test leads for 16 channels LA
Click here to download the Software and English maunal:
http:// .cn/eng/technology.asp
