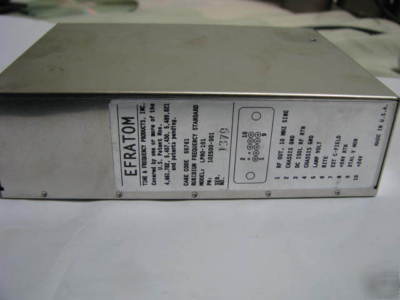

Efratom lpro-101 rubidium 10MHZ frequency standard
just test for 24hour later..not very good ,need some more time.
Frequency Drift Rate = -55.37 nHz/sec; -4.784 mHz/day; -5.537E-15/sec; -4.784E-10/day;
Tau=4.990 sec; Root Allan Variance=3.801E-9
Tau=9.947 sec; Root Allan Variance=2.690E-9
Tau=99.15 sec; Root Allan Variance=8.354E-10
Tau=1.019 ksec; Root Allan Variance=2.752E-10
Tau=10.00 ksec; Root Allan Variance=1.694E-10
EFRATOM LPRO 101 repair guide available
