150 ton 6" strk rousselle S2-150-72-36 straight side pr
150 Ton 6" Strk Rousselle S2-150-72-36 STRAIGHT SIDE PR
150 Ton 6" Stroke Rousselle S2-150-72-36 STRAIGHT SIDE PRESS, Air Clutch

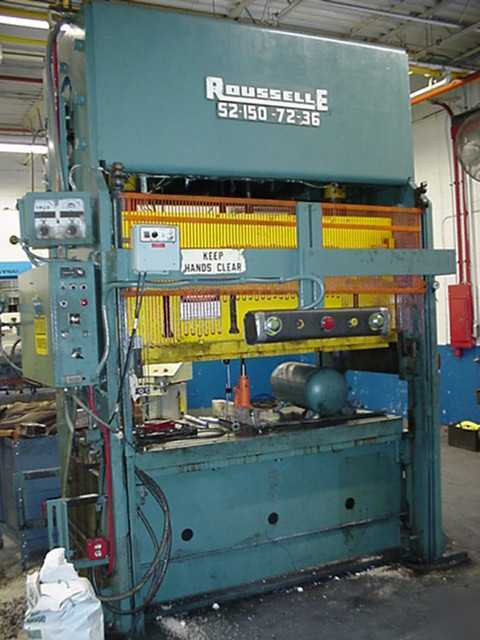

150 TON ROUSSELLE STRAIGHT SIDE DOUBLE CRANK PRESS
MODEL #S2-150-72-36 S/N 23601 NEW 1977
RATED CAPACITY ......................... 150 TONS
STROKE ................................. 6"
BED AREA .........(RL X FB)............. 72" X 36"
SLIDE AREA .......(RL X FB)............. 72" X 36"
SHUT HEIGHT ......(S.D.A.U.)............ 20"
ADJUSTMENT OF SLIDE .................... 6"
STROKES PER MINUTE ..................... 35
WINDOWS ................................ 30" X 18"
BOLSTER THICKNESS ..(T-SLOTTED)......... 4"
FLOOR TO BED ........................... 34"
HOLE IN BED ............................ 18-1/2" X 66"
- RAM ARRANGED FOR 4 KNOCKOUTS
O.A. 108"L X 96"W X 34,000 LBS.
