Dual trace 100MHZ 5.7" tft lcd analogue oscilloscopes

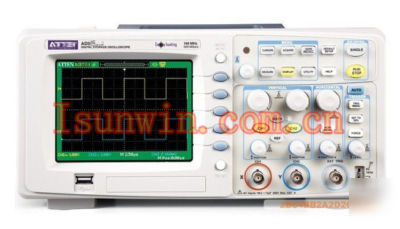

Dual Trace 100MHz 5.7" Color TFT LCD digital Analogue Oscilloscope New
Electronic measuring instruments The most powerful portable digital oscilloscope at present, the perfect combo with top performance and powerful function, which represent the highest level presently available in digital storage oscilloscopes.
The series digital storage oscilloscopes combine mature and steady hardware configuration, high-powered digital signal processing technology and functionality concepts with a mainstream display interface and the operation panel. In our design we did not attempt to match the specifications and usability of other comparable products currently on the market, but rather to exceed them in every respect, often outperforming same level products internationally.
Dual channel - channel bandwidth: 100MHz
The volume exquisite and it is convenient for carrying
Use Colored TFT LCD, the waveform display is clearer and stable
The real time sampling rate is 500MSa/
Memory depth of ADS1000 is 4K and that of ADS1000M is 2M
Trigger Modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes
Front and Back USB Host/Device, GPIB
Unique Digital Filter function and Waveform recorder function
Waveform recorder function
Thirty two parameters Auto measure function
Cursor measure covers Manual mode, Track mode and Auto mode
Channel waveform and it's FFT waveform display on split screen
Pop-up Menu display pattern is more convenient for users using it
Multiple Language User Interface
Support multilingual online help
Single Channel: 2M; Double Channels: 1M/CH
Color TFT(320*234)5.7 LCD
The Common Specifications Of All ADS1000 Series Products
12 divides full screen display
2mv-5v/div(1-2-5 Sequence
Edge, Pulse, Video, Slope, Alternative, Delay
CH1, CH2, Ext, Ext/5, AC Line
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Real Time, Equivalent Time
Window: Hanning, Hamming, Blackman Rectangular
Sampling Points: 1024 points
Support the sampling rate : 5KSa/s 200MSa/s (in a 1-2-5 sequence)
Off, 1sec, 2sec, 5sec, Infinite
Main, Window, Window Zoom, Roll, X-Y
2Sec, 5Sec, 10Sec, 20Sec, Infinite
Classical, Modern, Tradition, Succinct
Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean
100-240VAC 47HZ-440HZ 50VA Max
305mm x 154mm x133mm, about2.3kg
Support USB flash drive storage
Support PictBridge compatible printers and PC Remote control
(1:1, 10:1) Probe x 2, EasyScope Computer Software System, Power Cord, USB Cable, User Manual
* 1 x 100MHZ 5.7" Color TFT LCD digital Analogue Oscilloscope
