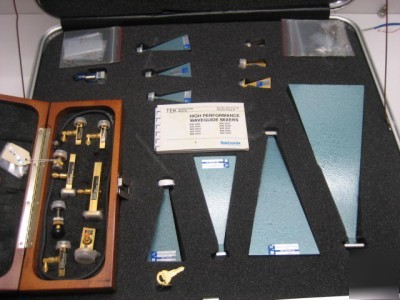

Tektronix waveguide mixer+horn spectrum analyzer 220GHZ
Following are the mixer models number and frequency ranges:
* Cable Assembly - RF 50 ohm coax
The mixers are GOLD-PLATED BRASS, conforming to MIL-G-45204 Class I, Type I specifications and wil l withstand harsh specifications. The enclosed Instruction Manual details Physical + electrical characteristics of each mixer.
Additionally 10 standard gain Horn Antennas are also included:
* TRG/ai ATD Division Model # 61932400
* TRG/ai ATD Division Model # 61932500
* TRG/ai ATD Division Model # 861A/599
* TRG/ai ATD Division Model # 861B/383
* TRG/ai ATD Division Model # 861V/385
* TRG/ai ATD Division Model # 861E387
* TRG/ai ATD Division Model # 861W/387
* TRG/ai ATD Division Model # 861F/387
* TRG/ai ATD Division Model # 861D/387
* TRG/ai ATD Division Model # 861G/387
Also included is Horn to RF adapter.
There are adapters included (looks like waveguide flange adapters not sure - please refer to the pictures)
