Syil X4 cnc mill 3AXIS super powerful & affordable
The X4 has a stylish industrial design with the capability of processing precision parts. The X4 utilizes the highest quality cast materials and high precision double nut circulating ball screws, allowing for high-precision repositioning and unmatched repeatability. The X4 footprint is small enough to allow for easy placement in a machine shop, garage or home.
The fundamental mechanical design of the X4 is its structural integrity. This design allows for the maximum rigidity possible for this size of CNC mill. The design allows for modified processing of all metal types; aluminum, steel, titanium, and even Inconel. It is also suitable for plastics, polymers, ceramics and wood.
The performance of the X4 standard creates the ability to precisely process small to medium size parts and can meet the requirements for many industries, like mould making, remote controlled car parts, gunsmithing, small manufacturing, etc.
The highly competitive pricing of the X4 standard makes this CNC mill a great option for those that want CNC manufacturing capabilities, but do not want to spend large amounts. On this principal, the X4 allows for effective business growth. The optional CNC 4th axis has precision table guides for placement anywhere on the milling table. The X4 options, like high speed retractable air spinde, Power draw bar and auto tool changer demonstrate the true versatility of the X4 standard.

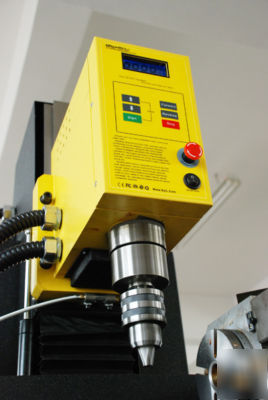

-2.1 Inch blue LCD RPM display screen-Displaying spindle speed and direction-Manual or CNC operated spindle-5 axis capable proprietary electronics-21.65" x 6.3" of table -5000rpm High Speed Precision Spindle-110v AC power supply -R8 imperial spindle-pre-installed high-speed cooling fan-High quality casting materials-Compact Footprint-Class 5 double nut ballscrews-Covered Ways -CE and CCC Safety Certification-Waterproof Axis plugs-4th axis quick disconnect switch-Automatic lubrication system pre-installed -pre-installed fourth axis interface-pre-installed computer arm-Optional SyiL Pneumatic Draw Bar System -Optional retractable high speed air spindle-Optional ATC (late april)-Optional Mach3 controled MPG-Optional Siemens 802c control-Optional full enclosure-Optional Servo upgrade (late april)-Extended warranty avalible-Training availble
-double nut ballscrews P5 class PMI OEM
- standard 25pin parallel port
- standard 15pin parallel port

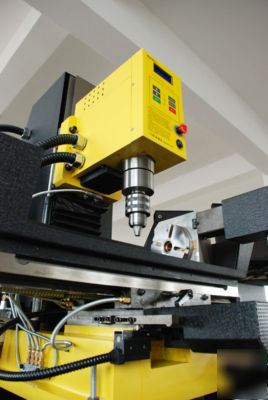

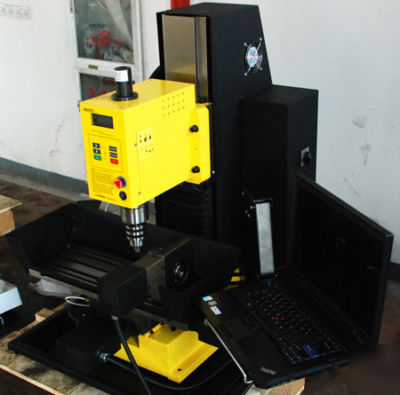

Note: Pictures display an optional (not included) rotary 4th axis and laptop PC.
