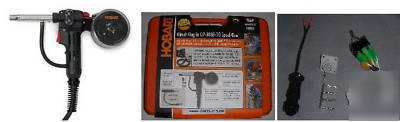

Hobart spoolgun installation kit -handler 135/175/140
Fits Hobart 135/140/175/180 WelderBrand new
This kit allows installation of the Hobart DP-3035 Spoolgun to Hobart Handler 135, Handler 175, Handler 140, Handler 180 and Handler 187 from Serial# LC175022 ( with the 2 pin square drive motor plugs)
Installation time is approx 30-45 minutes,. required drilling 2 holes in the inside case ( where the wire spool is so as to install a toggle switch for selection of spoolgun or regular operation and a 4 pin gun receptacle . Hooking up 4 pins on the 4 pin trigger plug on the front case and unpluging the drive motor and hooking it into the toggle switch plugs , putting trigger wires and motor feed wires on the 4 pin trigger plug.
There is no warranty expressed or implied as this application is not recommended by the manufacturer . We have installed the Hobart 100 Spoolgun on the above machines and have had no problems .
B & R also assumes no liability or warranty in cases of misuse or improper installation of this product.
