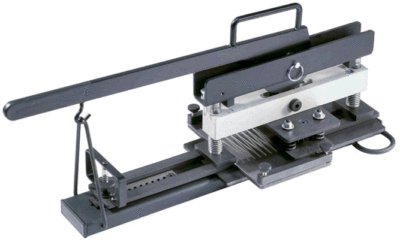

Habasit die cutting finger splice tool af-100/us 35
Habasit finger cutting tool. AF-100/US 35. Used for 10/35 geometry fingers. Can be used for other sizes with conversion kit. Kit not included.
We bought this item new for a project but we never used it. It has been tested a few times. We will include a new set of blades.
This tool is used to cut the finger profiles on Flexproof and quicksplice style belts .
You can get the manuals and more info from Habasit's website or just do a serch for Habasit AF-100/US 35
The following info is from Habasit's website. It normally sells for $1550.00 with a 6 week lead time from Habasit.
This machine works with Ammeraal, Seigling, and all types for belting that can be welded together with this type of finger splice.
The AF-100/US is a device for preparing (die-cutting) of Habasit belts and tapes up to a width of 100 mm and a
thickness of 6 mm for Flexproof joints. The belt is securely clamped on a movable carriage. This carriage is
positioned in steps of 10 mm under a die-cutting head. The die-cutting head with two knife blades is then
actuated with an eccentric lever, providing enough force to cut even the strongest Armid fabrics with ease.
The fingers are thus cut step by step, ensuring the most precise geometry of the cut and therefore optimum
tensile strength of the resulting joint. The AF-100/US is particularly suited for preparing Flexproof joinable
power transmission belts and machine tapes (TF range, TC range, CM/Flexfold range, Hamid range). It is well
suitable for on-site preparation but also works well for small- to medium-sized fabrication in the workshop.
