4 axis cnc router or mill stepper motor complete kit

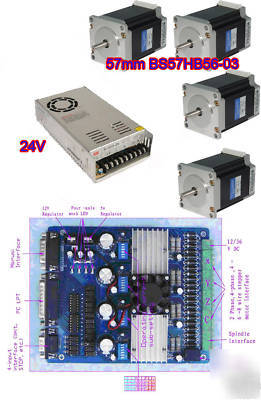

4 AXIS CNC Router or Mill Stepper Motor and driver and Power complete kit
* Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset !
For TB6560AHQ Datasheet, Please click here.
* 1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
* Adjustable 1.5A-3A drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
* Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment !
* On board current switching - Power output can be set according to specific user requirement !
* Full closed-type optical isolation to protect the user's computer and equipment
* 4 channel inputs interface- Can be used for XYZ limit and emergency stop !
* Professional design - Two stage signal processing with super anti-jamming !
* Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect !
4 pcs new Stepper motors 57mm BS57HB56-03
* 1 x TB6560 Stepper Motor Driver
* 4 x new Stepper motors 57mm BS57HB56-03
