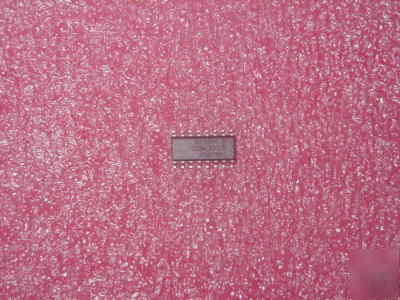

Qty 10 * 74HC165 74HC165D 8BIT par in/ser out shift smd
The 74HC165; 74HCT165 are high-speed Si-gate CMOS devices that comply with JEDEC standard no. 7A. They are pin compatible with Low-power Schottky TTL (LSTTL). The 74HC165; 74HCT165 are 8-bit parallel-load or serial-in shift registers with complementary serial outputs (Q7 and Q7) available from the last stage. When the parallel load (PL) input is LOW, parallel data from the D0 to D7 inputs are loaded into the register asynchronously. When PL is HIGH, data enters the register serially at the DS input and shifts one place to the right (Q0 Q1 Q2, etc.) with each positive-going clock transition. This feature allows parallel-to-serial converter expansion by tying the Q7 output to the DS input of the succeeding stage. The clock input is a gated-OR structure which allows one input to be used as an active LOW clock enable (CE) input. The pin assignment for the CP and CE inputs is arbitrary and can be reversed for layout convenience. The LOW-to-HIGH transition of input CE should only take place while CP HIGH for predictable operation. Either the CP or the CE should be HIGH before the LOW-to-HIGH transition of PL to prevent shifting the data when PL is activated.
Asynchronous 8-bit parallel load
Complies with JEDEC standard no. 7A
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
Specified from -40 C to +85 C and from -40 C to +125 C
Parallel-to-serial data conversion
The chip comes in a 16 pin Small Outline package.
**FREE POSTAGE ON EACH ADDITIONAL IC**
All orders are fully compensated for.
You can order as many adapters as we have in stock from this listing and any other listing, yet still only pay for the cost of postage for the first adaptor. This is because the adaptors weight is almost negligible, and thus the increase in postage cost is very tiny compared to the combined value of all adapters ordered; basically we pay the additional cost!
**PLEASE NOTE THAT WE DO NOT POST TO ITALY, DUE TO THE HIGH VOLUME OF POST THAT 'GOES MISSING'**
