> Nxp LPC2378 ARM7S evaluation board jtag usb lcd can
Nxp LPC2378 ARM7S evaluation board jtag usb lcd can
and an unconditional 30-day money-back guarantee on all cables.
NXP's ARM7TDMI-S LPC2378 microcontroller, 72MHz
512KB flash memory, 32KB SRAM
100/10MB Ethernet interface
Via a standard USB connector
USB host interface & connector
Dual CAN interfaces & connectors
Dual RS232 interfaces & connectors
100mm x 160mm (3.95" x 6.3")

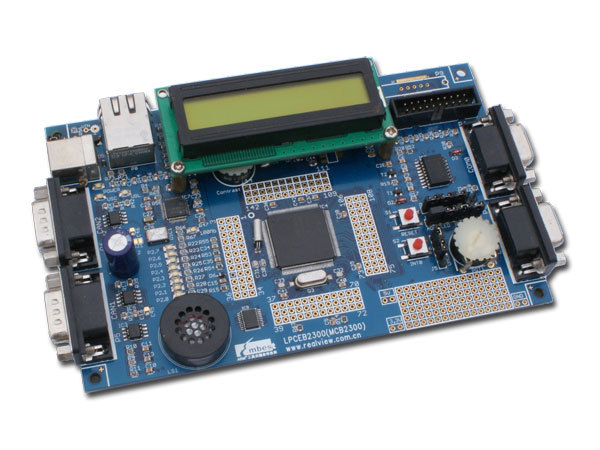

The following illustration shows the important interface and hardware components of the LPC2378 arm evaluation board.
* Start developing / experimenting quickly
* An evaluation version of the RealView MDK-ARM Microntroller Development Kit included (compiler, linker, editor, project management, etc.)
* Extensive documentation, such as user manual, datasheet, schematic drawing, etc.
Embest Provides plenty of software examples for this arm develoment tool (lcp2378 arm evaluation board), all in source code. These software examples can be debugged under the popular Keil MDK (Microcontroller Development Kit) environments, making practical use of the board's peripherals.
There are plenty documentation and material of Embest products, such as user's manual, schematic of the board, development guideline and most of the major chips' datasheet, convenient to find them in the accompanied CDROM, part of the useful documentation as following:
lpc23xx_user_manual_en.pdf
LPC2377_78_4_datasheet.pdf
NXP creates semiconductors, system solutions and software that deliver better sensory experiences in TVs, set-top boxes, identification applications, mobile phones, cars and a wide range of other electronic devices. News from NXP is located at .
Businesses: Automotive & Identification, Home, Multimarket Semiconductors, NXP Software
Joint Ventures: ~ 50% share in Moversa (JV with Sony), ~ 55% share in NuTune (JV with Thomson)
Manufacturing joint ventures:
40% share in Suzhou ASEN Semiconductors Co.Ltd.
60% share in Jilin NXP Semiconductors Ltd.
26.6% share in Advanced Semiconductor Manufacturing Corporation Limited
61.2% share in Systems on Silicon Manufacturing Company Pte.Ltd.
The LPC2378 microcontroller is based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance up to 30 % over Thumb mode. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.
The LPC2378 is ideal for multi-purpose serial communication applications. It incorporates a 10/100 Ethernet Media Access Controller (MAC), USB full speed device with 4 kB of endpoint RAM, four UARTs, two CAN channels, an SPI interface, two Synchronous Serial Ports (SSP), three I2C-bus interfaces, an I2S-bus interface, and an External Memory Controller (EMC). This blend of serial communications interfaces combined with an on-chip 4 MHz internal oscillator, SRAM of 32 kB, 16 kB SRAM for Ethernet, 8 kB SRAM for USB and general purpose use, together with 2 kB battery powered SRAM make this device very well suited for communication gateways and protocol converters. Various 32-bit timers, an improved 10-bit ADC, 10-bit DAC, PWM unit, a CAN control unit, and up to 104 fast GPIO lines with up to 50 edge and up to four level sensitive external interrupt pins make these microcontrollers particularly suitable for industrial control and medical systems.
Block Diagram of LPC2378 Microcontroller
