Injection mold base 8X10 7075 aluminum plastics

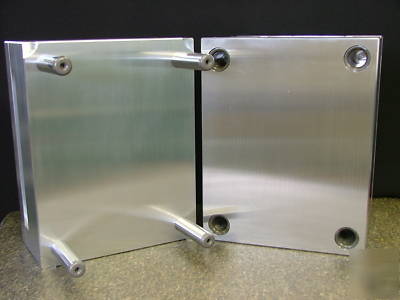

.Heat treated Leader pins and bushings .Vented leader pins .pry slots between plates .beveled edges on corners ground parting line surface .One piece bolted ejector housing .tubular dowel construction on A style AND .proudly made in the USA.

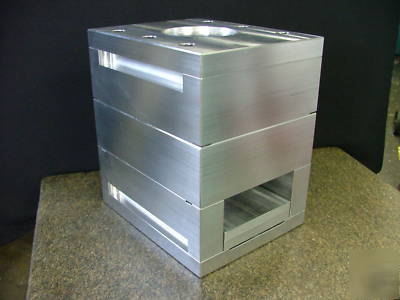

The aluminum injection mold base pictured for sale is a precisely machined 8 x 10 B style. A&B plate material is 7075 T651 aluminum ejector plates are 7075, clamping plates rails are 6061.
Other dimensions (in inches) are as follows:
A plate L x W x H - 8.000 x 10.000 x 2.440
B plate L x W x H - 8.000 x 10.000 x 2.440
Ejector plate thickness - .74 & .50 in x 5.0 wide
Clamping plate thickness .86
Qty 4- 3/4 dia. pins -1 pin offset
Approx. weight 73 lbs with pkg.
The ejector plates come without holes but are placed in the base for the picture.
Notice that no rest buttons are needed because the ejector plate has been machined with clearance under it.
Each plate is square and parallel within .001 and the thickness is parallel within .001 after assembly and the parting line ground.
We are proud to manufacture a high quality, reasonably priced product and will be glad to promptly answer other questions.
If you can use an aluminum base for your molding you won t find better value for the money anywhere.
A dimensional pdf drawing can be downloaded at or autocad file furnished with purchase.
We also have other sizes and will send a price list or quote a special size upon request. Please call (***) 889 1060 or Email ****@cinci.rr.com 10% of your purchase will be donated to help victims in Haiti.
