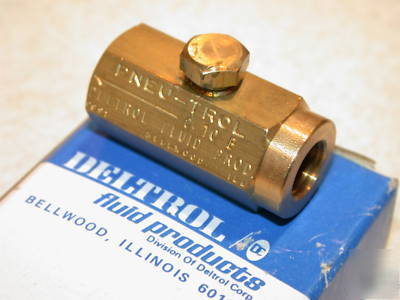

2 deltrol pneu-trol 1/8" brass ball check valve C10B
2 DELTROL PNEU-TROL 1/8" BRASS BALL CHECK VALVE C10B
Pneu-Trol Check Valves are available with a ball check. A slight pressure differential fully opens or closes the ball check valve. A locknut prevents unwanted changes in adjustment. A tamper proof adjustment key is standard.
Features: Low pressure differential required to open & close.
Application: Free flow is permitted in the direction of the arrow; positive check in the opposite direction. Brass valves for use in pneumatic systems and lower pressure hydraulic systems.
Max. operating pressure - 2,000 PSI (138 bar)
Crack Press. PSI (Bar)++ - 1 TO 2.5++ (.07 TO 17)
HYDRAULIC Max. Recommended Flow GPM (L/min) - 1.5 (5.7)
PNEUMATIC Flow Control Co-Efficient (Cv Factor) - 0.23
I fully guarantee these new Check Valves.
