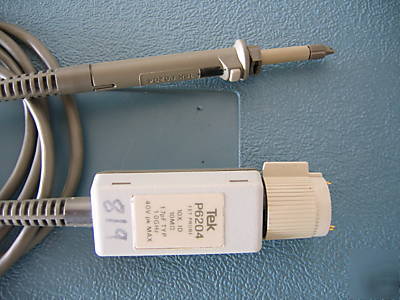

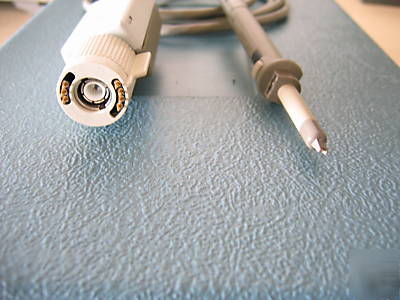

Tektronix P6204 fet probe tested & guaranteed
* Description: The P6204 Probe is a low circuit loading signal acquisition probes for CSA (Communications Signal Analyzers), DSA (Digitizing Signal Analyzers), 11000 Series and the TDS Family of Oscilloscopes. The P6204 is designed with FET devices for its inputs, which allows very high input resistance values and low input capacitances. The P6204 offers a wide linear dynamic input range for accessing most digital device families using today's logic voltage levels.
* Input capacitance: 1.9 pF
* Maximum input: DC + peak AC: 40 V
* Propagation Delay: 8.4 ns 200 ps
* Readout/identify: Yes/Yes
* Cable length: 1.5 meters

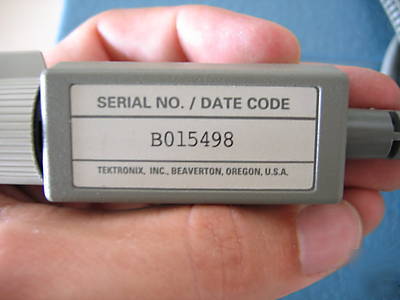

* Cosmetic Condition: Good.Light ink marking as can be seen in picture.
* Working Condition: This unit has been tested and operates properly. Unit is guaranteed non D.O.A.
