Rex type b durometer hardness gauge model 1700
REX TYPE B DUROMETER HARDNESS GAUGE MODEL 1700

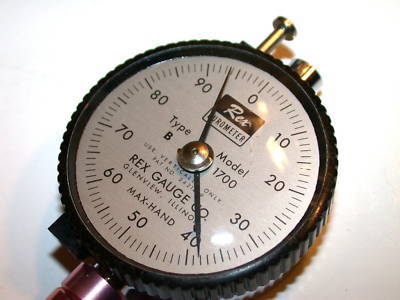

The Model 1700 features a max-hand, and an active-hand, so that creep may be observed. The max-hand holds the maximum reading, while the active-hand can be observed creeping down the scale. The 1700 is equipped with a max-hand reset button on the top left of the gauge.
Introduced in 1965, the Model 1700 was designed to enable the user to observe and measure the creep present in a specimen.
Creep refers to the tendency of the durometer reading to decrease over a period of seconds after the initial reading is taken. This occurs because the spring loaded durometer indentor may continue to penetrate the specimen as the gauge is held against the surface (depending on the type of material being tested). For example, in a specimen where creep is present, the initial reading may be 35.0 durometer points, while the reading after three seconds may be 33.5 durometer points.
Holds maximum reading until reset
Conforms to ASTM D-2240 and NIST Traceable
Size: 2.25 x 6.125 H - Net Weight: 6 oz.
http:// /pdf/REX_Catalog_2008.pdf
http:// /p-durometer-rex-1700.htm

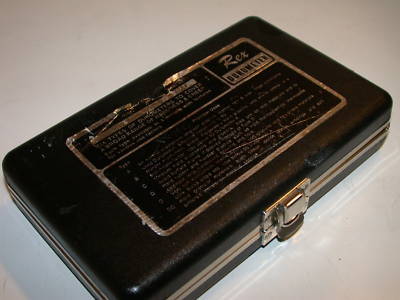

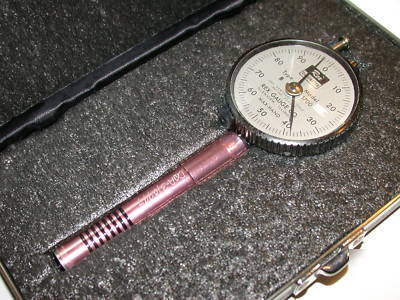

This is a very precision gage an easy to read dial and includes the original carrying/storage leather case.
I will fully guarantee this great item - new cost $560.
