New lotos 3-in-1 50AMP plasma cutter 200 tig arc welder

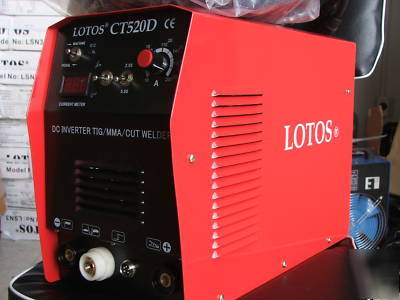

General Description of 2010 New Lotos CT520D W/ Power Plug and Digital Display
As one of the largest manufacturers of plasma cutting, tig/stick, arc (MMA) welding equipment in the world, LotosTech is proud to offer an extensive selection of industrial plasma cutting and tig/stick welding machine, CT520D. Lotos CT520D is designed and constructed to withstand extensive use in rugged industrial and construction environments. It is perfect for any home project too.
Lotos CT520D is a THREE-IN-ONE Digital Inverter Plasma Cutter (50A) / Tig Welder (200A) / Stick (MMA) welder (200A). You would have to purchase 3 separate machines to do what this ONE machine can do!
Using this portable plasma cutter is cheaper than Oxyacetylene after just a few cuts. Less cleaning, less maintenance, less noxious gases, less fire hazard, simply less overall work and a better, cleaner cut. The torch trigger can be moved for a custom fit. It can be used in finger or thumb positions. Torch head is low profile for tight spaces. High Frequency DC Plasma cuts thicker materials than standard DC plasma cutters. High Frequency Plasma cuts faster with less distortion in the work piece.
It's packed with full features like the separate machines. The Tig welds from this CT520D are clean and strong. This Tig welder is easier to use than any other Tig welder on the planet! Just flip a switch, set your amperage and weld...It's that simple. This machine will weld Steel, Stainless Steel, Moly, Ferrous,
* Three-in-one 50A plasma cutter, 200A tig welder and 200A stick welder
* Automatic Dual Voltage (110VAC/220VAC) Dual Frequency (50Hz/60Hz)
* High quality FUJI Mosfets (total 12 pieces) from Japan
* PAPST cooling system from German
* 3 Year Warranty on Parts and accessories and 1 Year Warranty on Labor from a trusted U.S. company
* Input Voltage: 110vac ~220vac (Auto detected, no switch is necessary)
* Input Power Frequency: 50 hz / 60 hz (Better performance under 60 hz)
* Housing Protection Grade: IP21
* Size: 21'' L x 16'' W x 11'' H
* Weight: 39 lbs (43 lbs with box)
* Certification: CE, CCC, CSA and ISO-9001 certification
* Duty Cycle: 60% at 50 amps and 100% at 35 amps
* Rated Input Current: 27 amps
* 3" Per minute @ 1" Steel (Severance Cut)
* 7" Per minute @ 3/4" Thick Steel
* 17" Per minute @ 1/2" Thick Steel
* Air pressure required: 60~70 psi @ 3.6 cfm
* Output Current: 15-200 Amps
* Power Usage 17 Amps @ 220VAC
* Can Weld: Steel, Stainless, Moly, Ferrous
* Duty Cycle: 60% @ 200 Amps 100% @ 105 Amps
* High Frequency Start / HF Welding
* Gas Flow: 2-5L/min (using Argon supply)
* Power Usage 23 Amps @ 220VAC
* Duty Cycle: 60% @ 200 Amps 100% @ 95 Amps
* Tig Welding Torch with 11 ft hose (with long and short caps)
* Initial cutting consumables (tip, electrode, o-ring and shield cup).
* Air filter and regulator with accessories and brackets
* Argon regulator (U.S. standard argon regulator)
* You shall provide 60~70 psi air supply, 110vac power plug for plasma cutting if you prefer to use 110vac.
* Footpedal is ready (not included) for this machine.
* Unit can stick weld aluminum (new feature, patent pending)
(2) We use real 50A plasma cutting torch instead of 40A or over-rated 60A cutting torch which will damage your cutter. The size of our tips are much larger than traditional 40A PT-31 consumables.
(3) We offer FREE USA standard argon regulator.
(4) We offer 3 years warranty on Labor and Parts. other sellers do not offer any warranty or only one year warranty or no warranty on Labor.
(6) We give FREE Plasma Cutting initial consumable, other seller may charge extra fees.
(7) We offer real 200A tig welder and stick welder, other sellers may sell 180A tig welder and 160A stick welder.
(9) We installed 220VAC UL-Certified Power Plug for this machine (other seller may ask you to pay extra 30 dollars for the plug and more dollars for installation)
(10) We offer 7 days Money back (if the item is not defective, we will charge 25% restocking fee), Other sellers do not offer any money back guarantee.
Cutting Demo: Stick Welding Demo: Tig welding demo: will be uploaded
