New P7313 P7513 P7380 P7508 P7380A P7520 P7313SMA

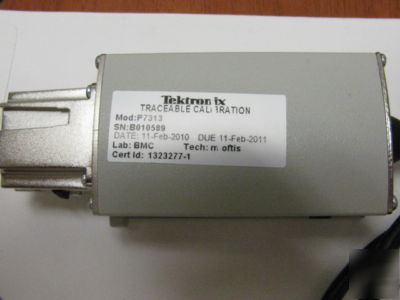

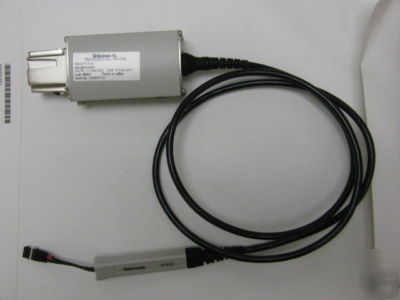

P7313 differential probe, NEW, tek warranty expires dec. 2010
* >13.0 GHz Bandwidth (P7313SMA only, typical)
* >8.0 GHz Bandwidth (P7380SMA only, typical)
* 50 Termination Network, Differential SMA Inputs
* Industry-leading Differential Return Loss and VSWR
* High-bandwidth Differential Amplifier with Excellent CMRR
* Internal Termination Voltage Generator Controlled by Internal by Oscilloscope*1, External Source, or Automatically by the Probe
* Phase-matched SMA Cables (38 inch length, <1 ps skew)with Cable Loss Compensation
* Switchable Gain for Extended Dynamic Range
* Auxiliary (inverted) Output for use with Spectrum Analyzers, Network Analyzers, or as a Clock Recovery Trigger Source
* Validation and Compliance Testing of Serial Data Standards Including, but Not Limited To:
* HDMI/DVI (P7313SMA only)
*1 Not available on all oscilloscopes.
Tektronix Differential SMA Probes also provide a common mode DC voltage input to the termination network. The termination voltage can be supplied either externally by the user or internally by the oscilloscope. In addition, there is also an automatic mode that senses the common mode voltage of the input signal and automatically sets the termination voltage to match. The P7313SMA has an extended termination voltage range that makes it ideal for testing differential standards with high common mode voltages like HDMI and DVI.
Taken together, the high-speed differential amplifier, superior 50 terminations, low return loss, flexible termination voltage, and quality phase-matched SMA cables create a world-class differential acquisition system when used with Tektronix oscilloscopes.
2.5x or 12.5x, user selectable
0.800 Vpk-pk (2.5x) 3.6 Vpk-pk (12.5x)
<30 dB to 500 MHz (VSWR<1.065:1)
<20 dB to 6.5 GHz (VSWR<1.22:1)
<15 dB to 10 GHz (VSWR<1.43:1)
<12 dB to 13 GHz (VSWR<1.67:1)
>13.0 GHz Differential SMA Probe for TekConnect Interface.
Includes: Standard Accessories (see table), Calibration Data Report (Opt. D1), Certificate of Traceable Calibration.
>8.0 GHz Differential SMA Probe for TekConnect Interface.
Pouch, Nylon Carrying Case with inserts
020-2737-xx Simplified Chinese
Phase-matched Dual SMA Cables (38 inch long)
SMA Female to BNC Male Adapter
Banana Plug to 0.080 in. Diameter Pin Jack Cable Adapter, Red (4 ft. long)
Banana Plug to 0.080 in. Diameter Pin Jack Cable Adapter, Black (4 ft. long)
0.040 in. Diameter Pin Jack to 0.08 in. Diameter Pin Plug Adapter, Black
8000 Series TekConnect Probe Interface
Real-time Spectrum AnalyzerTekConnect Probe Adapter
Opt. CA1 - A single calibration event or coverage for the designated calibration interval, whichever comes first.
Opt. C3 - Calibration Service 3 Years.
Opt. C5 - Calibration Service 5 Years.
Opt. D3 - Calibration Data Report 3 Years (with Opt. C3).
Opt. D5 - Calibration Data Report 5 Years (with Opt. C5).
Opt. R3 - Repair Service 3 Years.
Opt. R5 - Repair Service 5 Years.
Opt. L7 - Simplified Chinese Manual.
