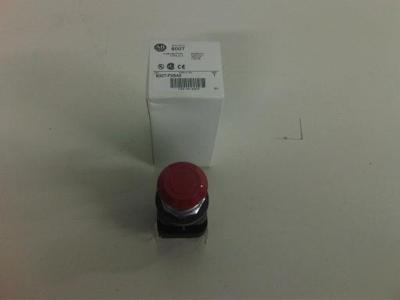

2-position push-pull non-illuminated, 800T
Refer to the contact ratings tables below.
2200V for one minute, 1300V for one minute (Logic Reed)
1 000 000 at max. rated load, 200 000 at max. rated load (Logic Reed)
10 2000 Hz 1.52 mm displacement (peak-to-peak) max./10 G max. (except Logic Reed)
1/2 cycle sine wave for 11 ms 25 G (contact fragility) and no damage at 100 G
Type 1/4/12/13 (Bul. 800T); Type 1/4/4X/12/13 (Bul. 800H); EN/IEC 60529 IP66/65
Shallow, mini, and low voltage contact blocks: Slow, double make and break
Logic Reed and sealed switch contact blocks: Single break magnetic
Wire gauge/Terminal screw torque
9 lbs max. push or pull 30 in oz. max. twist, 6 in oz. minimum return
3 lbs max. at 0.205 in plunger travel
Note:Operating temperatures below freezing are based on the absence of moisture and liquids. Contact your local Rockwell Automation sales office or Allen-Bradley distributor for use in lower temperature applications.
50 95% RH from 77 140 F (25 60 C) per Procedure IV of MIL-STD-BIOC, Method 507.1 cycling test
Maximum thermal continuous current Ith 10 A AC/2.5 A DC. Bulletin 800T and 800H units with Cat. No. 800T-XA contacts have ratings as follows:
T For applications below 24V/24 mA, PenTUFF or Logic Reed contacts are recommended.
