Lot of 10 cherry microswitches E33 10A 125/250 vac #258

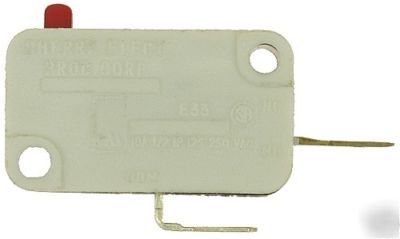

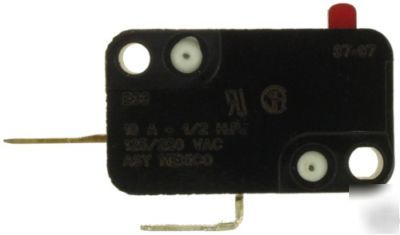

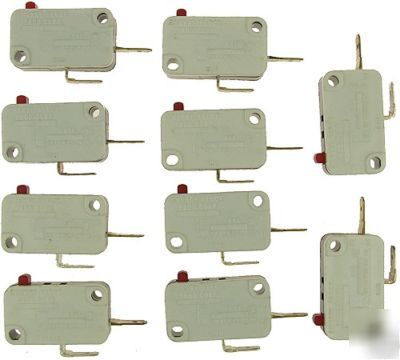

Lot of 10 Cherry Snap-Action Microswitches E33 10A 1/2HP 125/250 VAC
Lot of 10 brand new Cherry E33 10A 1/2Hp 125/250 VAC microswitches. This switch is SPST(single pole single throw), NO(normally open). The wiring terminals are .178" wide push-on spades. These switches have two mounting holes which go all the way through them for mounting with machine bolts or rivets.
Overall Dimensions: 3/4" Tall x 1-1/2" Wide x 3/8" Deep (including activation button and wiring terminals)
Housing Dimensions: 5/8" Tall x 1-1/8" Wide x 3/8" Deep (not including activation button and wiring terminals)
Contact Rating: 10A 1/2HP 125/250 VAC
Connection Leads: .178" Wide Push-On Tab Terminals
