Ecg/ekg workstation 12-lead with interpretation a
Sample rate: 1000Hz, simultaneous 12 leads recording
Defibrillation Protection: Built-in box
Frequency response: 0.05-250 Hz
Max electrode potential: 300mV DC
Patient cable: standard 10-wire, 15-pin D connection

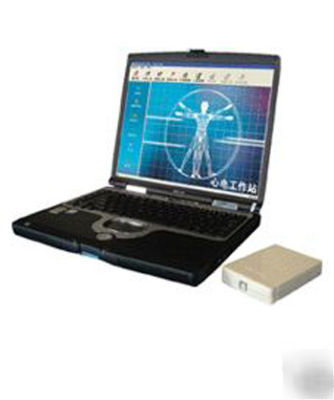

PC-ECG CMS8000A is a kit with a software and a USB acquisition Box + patient cable ..(everything necessary in the package to make an ECG). Any computer with Windows 2000, XP and Vista can be used (desktop or laptop). It's a very complete program with analysis and interpreting. Accurancy ++++. You can acquire continous ECG during several secondes or minutes if you want and look at them anytime (they are stored in a complete patient database). You can print in pdf format (with acrobat pro) or any printers (elecronics or not) .
You can perform an ECG at a patient's home and it wil be stored in your computer so you can review the test anytime and print to paper at your office. You can set the acquisition time to 5 or 10 secondes or more. You can do instant ECG anytime (in rythm trouble for ex.) You can analyse heart rate statistics or QT analysis and more.
You can save your ECG in pdf formats and include them to your patients database software, you can save them and compare, share, review them in the future...
1. ECG: 12-lead resting PC-ECG with auto interpretation
2. VCG: Vector-cardiograph with auto interpretation
3. TVCG: Timed Vector-cardiograph
4. FCG: Frequency ECG (unique technique to detect ischemia and CAD)
6. SAECG(VLP): Signal Averaged ECG or Ventricular Late Potentials, time domain and 3-D frequency domain)
7. QTD: QT Dispersion with chroma map
8. HRV: Heart Rate Variability (time domain, 3-D frequency domain, Lorenz poincare plots
9. PMECG: Pacemaker ECG analysis
l High sampling rate of 1000Hz
l Applying anti-baseline-drift technology ensuring the stability of ECG baseline
l Wilson and Frank hookup system
l Meet the international standard of IEC60601-1
l Easy operation and perfect printout
l Diagnosis of coronary heart disease
l Perfect time domain, frequency domain and non-linear HRV analysis
l Perfect ECG database management system
