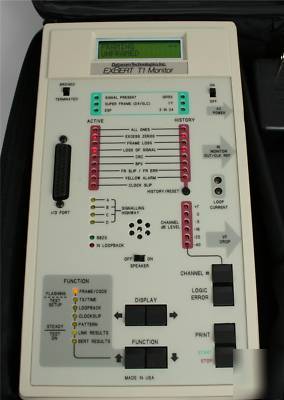

Datacom exbert T1 link analyzer & channel monitor
About the Datacom ExBERT T1 Link Analyzer & Channel Monitor :
*Portable, easy to use T1 circuit results and performance test set.
*Provides intrusive and non-intrusive in-service DS1 link and DS0 channel level monitoring within the T1 link.
*Automatically detects the framing type and line code present on a T1 line.
*Tests D4 and ESF Framing, detects logic errors.
*Supports D1D,D2, D3/4, ESF, and SLC 96 Channel Formats
*LED display for easy to read logic results.
*T1 Signal Input (Single bantam jack, 110 ohms).
*T1 Signal Output: Freq. 1544000 +/- 5PPM Level 3V Peak to Base +/- .3V

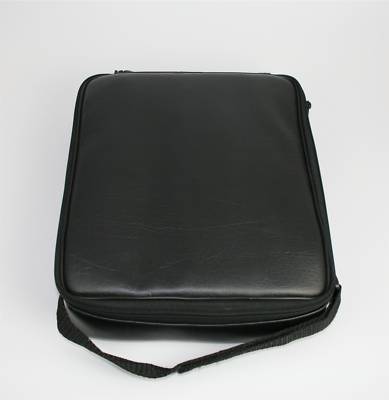

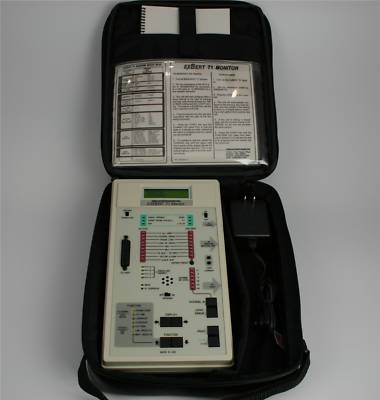

Soft protective zipper case, owners manual, laminated quick-reference guide,power supply.
